STM1403ASMQ6F
IC SUPERVISOR 1 CHANNEL 16QFNManufacturer: STMicroelectronics
Categories: Supervisors
Quality Control: Learn More
STMicroelectronics STM1403ASMQ6F is a single-channel supervisor IC designed for robust power monitoring applications. This component features an open-drain or open-collector output configuration and a reset timeout of 140ms minimum. The voltage threshold is precisely set at 2.93V, with an active-low reset signal. Packaged in a compact 16-QFN (3x3) with an exposed pad, it is suitable for surface-mount assembly and supplied on tape and reel. Operating across an industrial temperature range of -40°C to 85°C, this device is commonly employed in automotive, industrial control, and consumer electronics where reliable power-on reset and supervisor functions are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

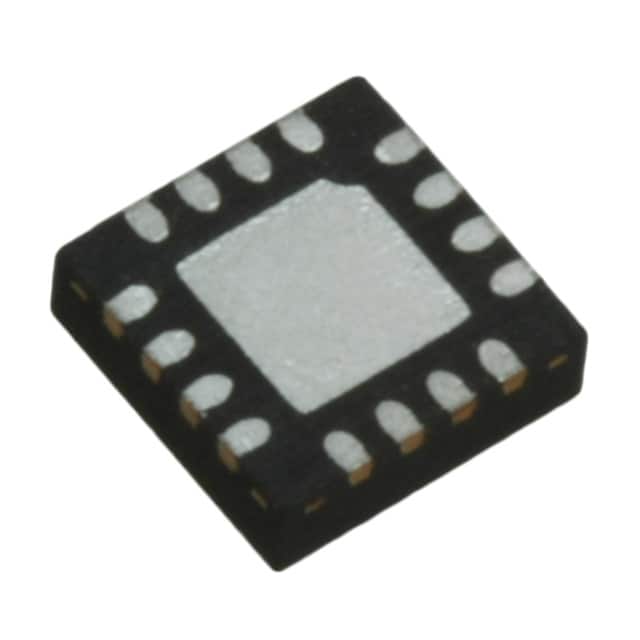

| Package / Case | 16-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | Open Drain or Open Collector |
| Type | Simple Reset/Power-On Reset |
| Reset | Active Low |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Number of Voltages Monitored | 1 |
| Reset Timeout | 140ms Minimum |
| Voltage - Threshold | 2.93V |
| Supplier Device Package | 16-QFN (3x3) |
| Programmable | Not Verified |
