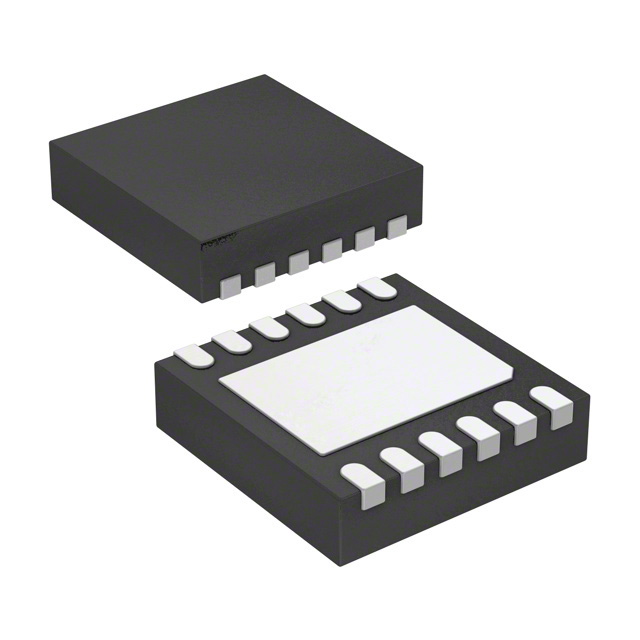

STOD13AMTPUR
IC REG AMOLED DISPLAY 2OUT 12DFNManufacturer: STMicroelectronics
Categories: Special Purpose Regulators
Quality Control: Learn More
The STMicroelectronics STOD13AMTPUR is a dedicated voltage regulator IC designed for AMOLED display applications. This component features two distinct outputs, delivering a fixed 4.6V and an adjustable output ranging from -2.4V to -5.4V, catering to the specific voltage requirements of AMOLED panels. With an input voltage range of 2.5V to 4.5V, it is well-suited for portable and battery-powered devices. The STMicroelectronics STOD13AMTPUR is supplied in a compact 12-DFN (3x3) package, facilitating surface mount assembly. Its robust operating temperature range of -40°C to 85°C ensures reliable performance across various environmental conditions. This device is commonly utilized in mobile devices, wearables, and other consumer electronics incorporating AMOLED display technology.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-UFDFN Exposed Pad |
| Voltage - Output | 4.6V, -2.4V ~ -5.4V |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Voltage - Input | 2.5V ~ 4.5V |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Converter, AMOLED Display |
| Supplier Device Package | 12-DFN (3x3) |
