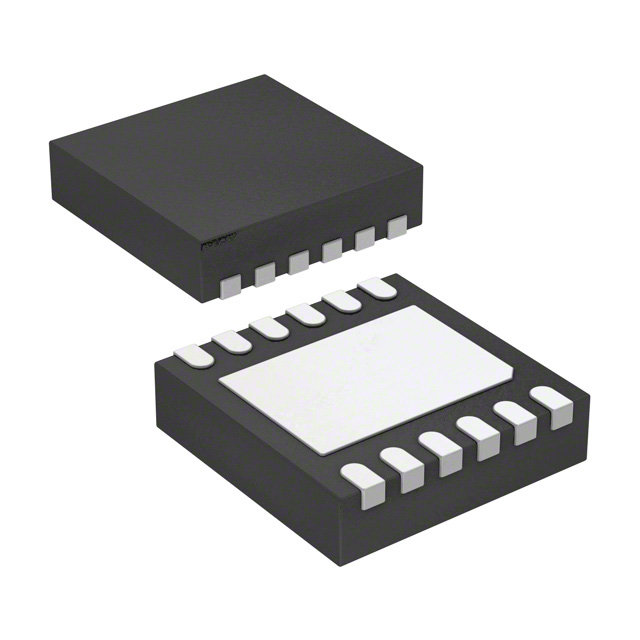

STOD1317BTPUR
IC REG AMOLED DISPLAY 1OUT 12DFNManufacturer: STMicroelectronics
Categories: Special Purpose Regulators
Quality Control: Learn More
STMicroelectronics STOD1317BTPUR is a voltage regulator IC designed for AMOLED display applications. This single-output device, presented in a 12-DFN (3x3) package with an exposed pad, facilitates efficient voltage conversion for display backlights and driver circuitry. It operates within an input voltage range of 2.6V to 4.8V and provides adjustable output voltages from 6V to 13V, accommodating diverse AMOLED panel requirements. The STOD1317BTPUR is suitable for surface-mount assembly and operates across a temperature range of -40°C to 85°C. Its design is optimized for use in portable consumer electronics and automotive display systems. This component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-UFDFN Exposed Pad |
| Voltage - Output | 6V ~ 13V |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Voltage - Input | 2.6V ~ 4.8V |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Converter, AMOLED Display |
| Supplier Device Package | 12-DFN (3x3) |
