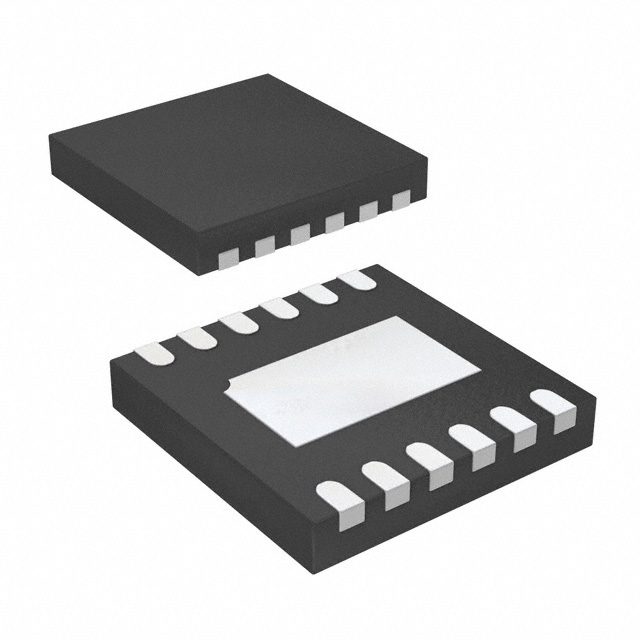

STOD02PUR
IC REG AMOLED DISPLAY 2OUT 12DFNManufacturer: STMicroelectronics
Categories: Special Purpose Regulators
Quality Control: Learn More
STMicroelectronics STOD02PUR is a versatile AMOLED display voltage regulator IC featuring two outputs. This component is engineered for efficient power conversion in demanding display applications. With an input voltage range of 2.5V to 4.5V, it delivers a primary output of 4.6V and a secondary negative output adjustable from -2.3V to -5.9V, catering to the specific voltage requirements of AMOLED panels. Its compact 12-DFN (3x3) package with an exposed pad facilitates optimal thermal management for surface mount integration. The STOD02PUR is suitable for operation across a wide ambient temperature range of -40°C to 85°C, making it a reliable choice for applications in consumer electronics, mobile devices, and automotive displays. Supplied on tape and reel for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-UFDFN Exposed Pad |
| Voltage - Output | 4.6V, -2.3V ~ -5.9V |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Voltage - Input | 2.5V ~ 4.5V |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Converter, AMOLED Display |
| Supplier Device Package | 12-DFN (3x3) |
Request a Quote
