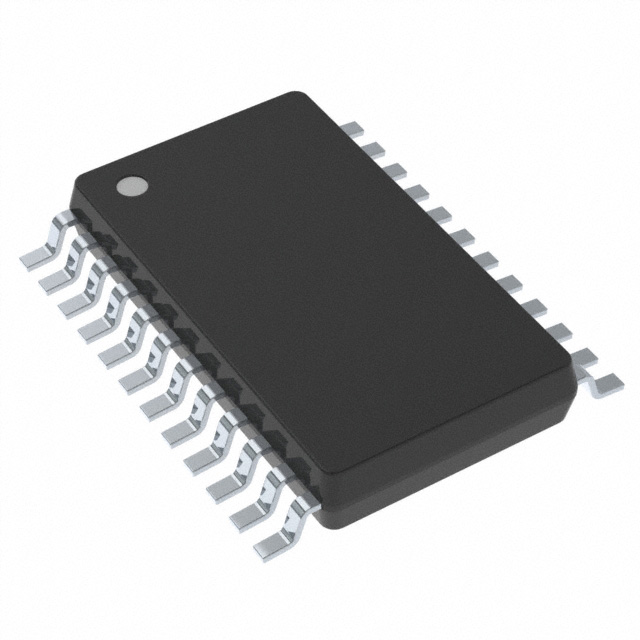

LNBH23TPPR
IC REG CONV SAT 1OUT POWERSSO-24Manufacturer: STMicroelectronics
Categories: Special Purpose Regulators
Quality Control: Learn More
STMicroelectronics LNBH23TPPR is a voltage regulator IC designed for analog and digital satellite set-top box receivers and satellite TV applications. This device features a single output and operates from an 8V to 15V input voltage range, providing regulated output voltages of 13.4V and 18.5V. The LNBH23TPPR is housed in a 24-PowerBSOP package with a 7.50mm width, utilizing Surface Mount technology for efficient board integration. Its PowerSSO-24 supplier device package ensures robust thermal performance. The component is supplied on a Tape & Reel (TR) for high-volume manufacturing processes and operates within an ambient temperature range of 0°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-PowerBSOP (0.295"", 7.50mm Width) |
| Voltage - Output | 13.4V, 18.5V |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Voltage - Input | 8V ~ 15V |
| Operating Temperature | 0°C ~ 85°C |
| Applications | Converter, Analog and Digital Satellite STB Receivers/SatTV |
| Supplier Device Package | PowerSSO-24 |
