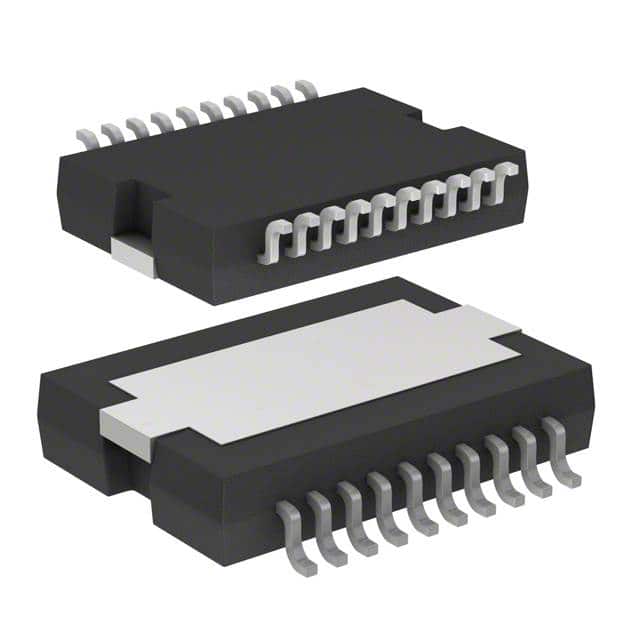

L5956PDTR
IC REG CONV CAR AUD 4OUT PWRSO20Manufacturer: STMicroelectronics
Categories: Special Purpose Regulators
Quality Control: Learn More
STMicroelectronics L5956PDTR is a versatile 4-output voltage regulator IC designed for automotive audio systems. This component, packaged in a 20-SOIC exposed pad (PowerSO-20), facilitates surface mount assembly and operates within a temperature range of -40°C to 85°C. It accepts input voltages from 6V to 18V, providing regulated outputs at 3.3V, 5V, and 8.5V, making it suitable for powering multiple subsystems within a vehicle's audio infrastructure. The L5956PDTR is supplied on tape and reel (TR) for efficient production handling. Its robust design and specialized functionality make it a key component in automotive applications requiring reliable power conversion for audio processing and amplification stages.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.433"", 11.00mm Width) Exposed Pad |
| Voltage - Output | 3.3V, 5V, 8.5V |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Voltage - Input | 6V ~ 18V |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Converter, Car Audio System |
| Supplier Device Package | PowerSO-20 |
