L5956
IC REG CONV CAR 4OUT 15MULTIWATTManufacturer: STMicroelectronics
Categories: Special Purpose Regulators
Quality Control: Learn More
STMicroelectronics L5956 is a versatile voltage regulator IC designed for automotive applications. This component, part of the Special Purpose Regulators category, features four distinct outputs, delivering 3.3V, 5V, and 8.5V, with one output also capable of 15 different voltage configurations. It operates within an input voltage range of 6V to 18V and is housed in a 15-Multiwatt package, suitable for through-hole mounting. The L5956 is engineered for demanding automotive environments, with an operating temperature range of -40°C to 85°C, making it an ideal solution for car audio systems and other power conversion needs in vehicles. Supplied in tubes, this device facilitates efficient integration into manufacturing processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |

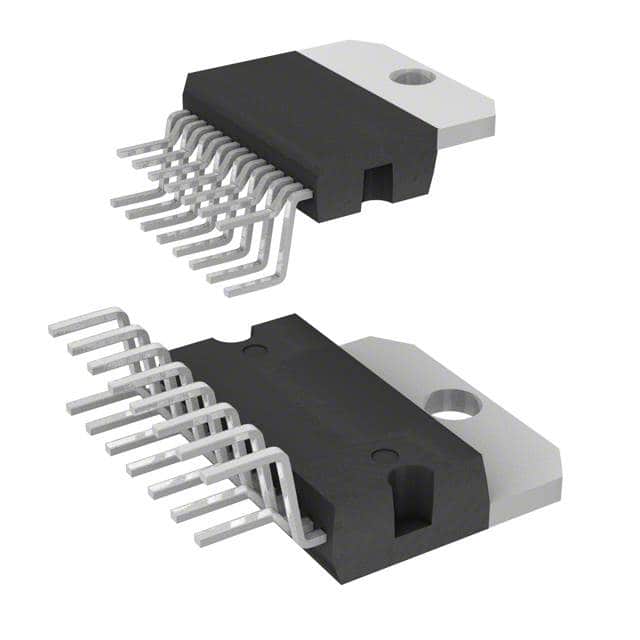

| Package / Case | Multiwatt-15 (Vertical, Bent and Staggered Leads) |
| Voltage - Output | 3.3V, 5V, 8.5V |
| Mounting Type | Through Hole |
| Number of Outputs | 4 |
| Voltage - Input | 6V ~ 18V |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Converter, Car Audio System |
| Supplier Device Package | 15-Multiwatt |
