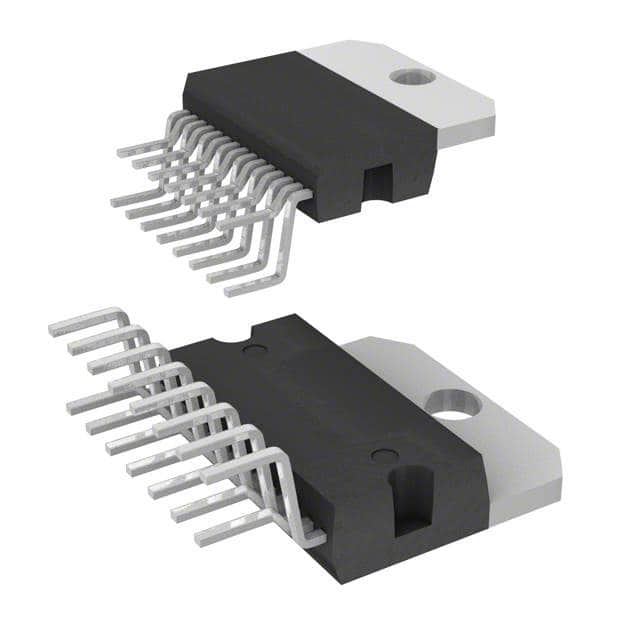

L5950
IC REG CONV CAR 5OUT 15MULTIWATTManufacturer: STMicroelectronics
Categories: Special Purpose Regulators
Quality Control: Learn More
STMicroelectronics L5950 is a versatile voltage regulator IC designed for automotive applications, specifically within car audio systems. This component features five distinct voltage outputs: 5V, 8.5V, and 10V, catering to the diverse power requirements of automotive audio circuitry. Operating within a voltage input range of up to 26.5V, the L5950 is housed in a 15-Multiwatt package with vertical, bent, and staggered leads, suitable for through-hole mounting. Its robust design ensures reliable performance across an operating temperature range of -40°C to 85°C. This device is commonly employed in automotive converters to manage and stabilize voltage rails for audio amplification and processing stages. The L5950 is supplied in tube packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Multiwatt-15 (Vertical, Bent and Staggered Leads) |
| Voltage - Output | 5V, 8.5V, 10V |
| Mounting Type | Through Hole |
| Number of Outputs | 5 |
| Voltage - Input | Up to 26.5V |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Converter, Car Audio System |
| Supplier Device Package | 15-Multiwatt |
