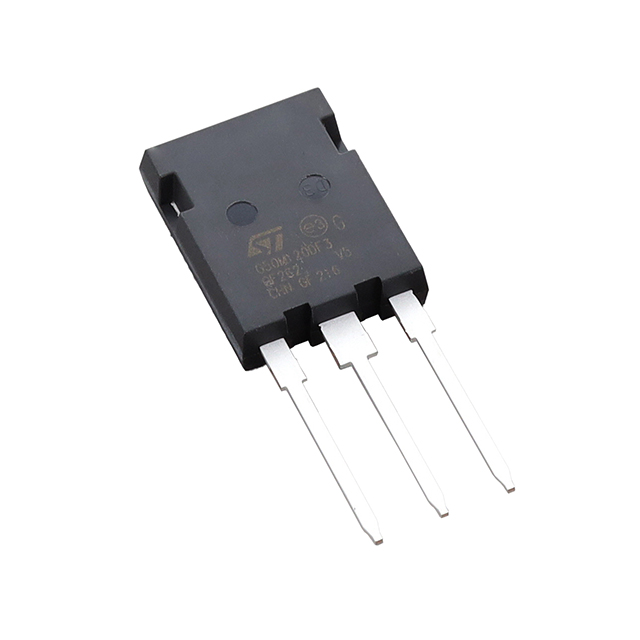

STGYA50M120DF3
IGBT TRENCH FS 1200V 100A MAX247Manufacturer: STMicroelectronics
Categories: Single IGBTs
Quality Control: Learn More
IGBT Trench Field Stop 1200 V 100 A 535 W Through Hole MAX247™
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 325 ns |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 50A |
| Supplier Device Package | MAX247™ |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 38ns/258ns |
| Switching Energy | 2mJ (on), 3.2mJ (off) |
| Test Condition | 600V, 50A, 10Ohm, 15V |
| Gate Charge | 194 nC |
| Current - Collector (Ic) (Max) | 100 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 200 A |
| Power - Max | 535 W |
