STGWA30M65DF2AG
AUTOMOTIVE-GRADE TRENCH GATE FIEManufacturer: STMicroelectronics
Categories: Single IGBTs
Quality Control: Learn More

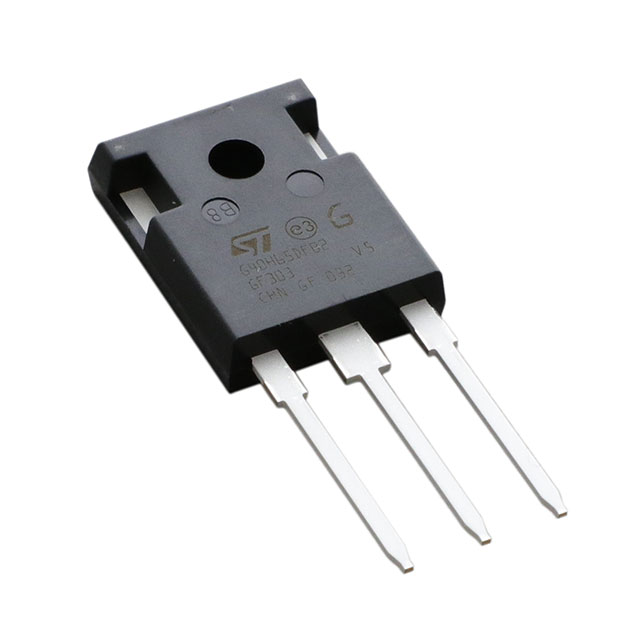

IGBT Trench Field Stop 650 V 87 A 441 W Through Hole TO-247 Long Leads
Additional Information
Series: MRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 151 ns |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 30A |
| Supplier Device Package | TO-247 Long Leads |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 21.6ns/138ns |
| Switching Energy | 756µJ (on), 1.057mJ (off) |
| Test Condition | 400V, 30A, 10Ohm, 15V |
| Gate Charge | 81.6 nC |
| Grade | Automotive |
| Current - Collector (Ic) (Max) | 87 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector Pulsed (Icm) | 120 A |
| Power - Max | 441 W |
| Qualification | AEC-Q101 |
