STGW60H65DFB-4
IGBTManufacturer: STMicroelectronics
Categories: Single IGBTs
Quality Control: Learn More

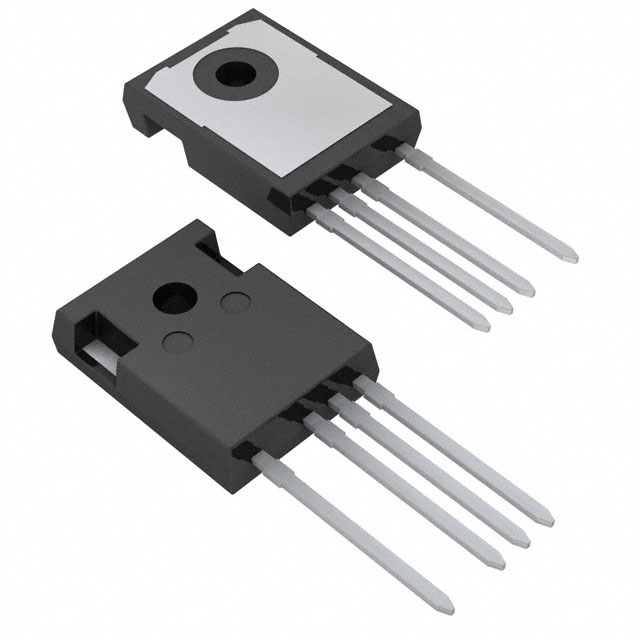

STMicroelectronics STGW60H65DFB-4 is a 650V, 80A Trench Field Stop IGBT from the HB series. This through-hole component, packaged in a TO-247-4, offers a maximum collector power dissipation of 375W. Key electrical characteristics include a Vce(on) of 2V at 15V/60A, a gate charge of 306 nC, and switching energies of 346µJ (on) and 1.161mJ (off) under specified test conditions. The device operates across a temperature range of -55°C to 175°C. This IGBT is suitable for applications in industrial power supplies, motor drives, and renewable energy systems.
Additional Information
Series: HBRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-4 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 60 ns |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 60A |
| Supplier Device Package | TO-247-4 |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 65ns/261ns |
| Switching Energy | 346µJ (on), 1.161mJ (off) |
| Test Condition | 400V, 60A, 10Ohm, 15V |
| Gate Charge | 306 nC |
| Current - Collector (Ic) (Max) | 80 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector Pulsed (Icm) | 240 A |
| Power - Max | 375 W |
Request a Quote
Clients Also Buy
STGB30H60DLLFBAG
IGBT
STGW40H65DFB-4
IGBT

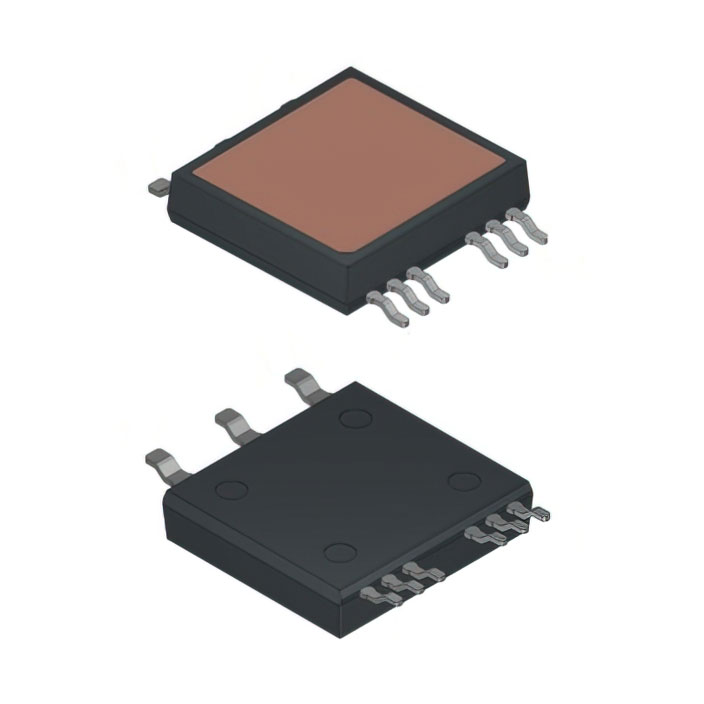

STGSH80HB65DAG
