STGW45NC60WD

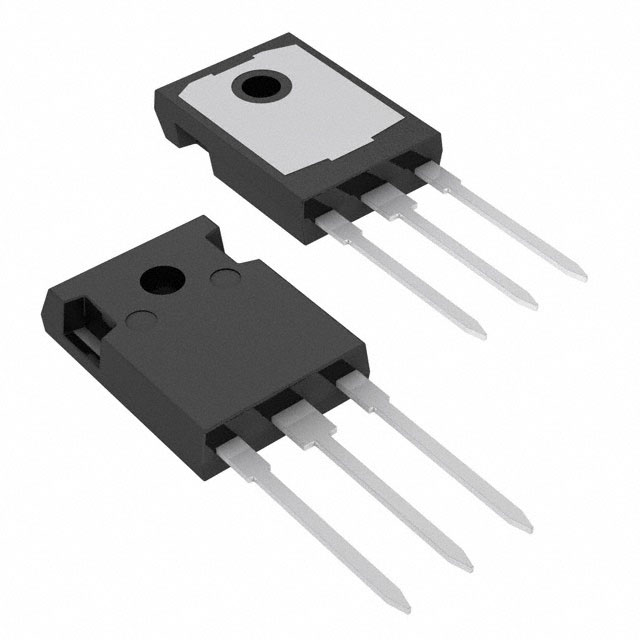

IGBT 600V 90A 285W TO247Manufacturer: STMicroelectronics
Categories: Single IGBTs
Quality Control: Learn More
STMicroelectronics STGW45NC60WD is a 600V, 90A insulated gate bipolar transistor (IGBT) from the PowerMESH™ series. This component features a high collector current capability of 90A continuous and 230A pulsed, with a maximum power dissipation of 285W. The STGW45NC60WD is housed in a TO-247-3 package with long leads, designed for through-hole mounting. Key performance parameters include a low VCE(on) of 2.6V at 15V gate voltage and 30A collector current, and switching times of 33ns turn-on and 168ns turn-off at 25°C. Switching energy is rated at 302µJ on and 349µJ off under test conditions of 390V, 30A, and 10 Ohm. The operating temperature range is -55°C to 150°C. This device is suitable for applications in industrial motor drives and power factor correction.
Additional Information
Series: PowerMESH™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 45 ns |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 30A |
| Supplier Device Package | TO-247 Long Leads |
| IGBT Type | - |
| Td (on/off) @ 25°C | 33ns/168ns |
| Switching Energy | 302µJ (on), 349µJ (off) |
| Test Condition | 390V, 30A, 10Ohm, 15V |
| Gate Charge | 126 nC |
| Current - Collector (Ic) (Max) | 90 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 230 A |
| Power - Max | 285 W |
