STGW40NC60W
IGBT 600V 70A 250W TO247Manufacturer: STMicroelectronics
Categories: Single IGBTs
Quality Control: Learn More

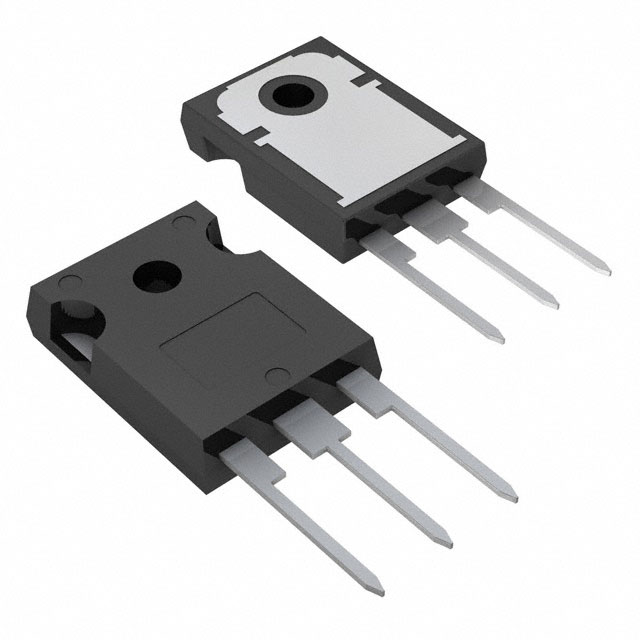

STMicroelectronics STGW40NC60W is a 600V PowerMESH™ series IGBT with a 70A continuous collector current and 230A pulsed collector current. This through-hole component, packaged in a TO-247-3 with long leads, offers a maximum power dissipation of 250W. Key electrical characteristics include a gate charge of 126 nC and a low on-state voltage of 2.5V at 15V gate, 30A collector current. Switching performance is characterized by switching energies of 302µJ (on) and 349µJ (off) at 390V, 30A, 10 Ohm, 15V. The operating temperature range is -55°C to 150°C (TJ). This device is suitable for applications in industrial motor drives, power factor correction, and uninterruptible power supplies.
Additional Information
Series: PowerMESH™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 30A |
| Supplier Device Package | TO-247 Long Leads |
| IGBT Type | - |
| Td (on/off) @ 25°C | 33ns/168ns |
| Switching Energy | 302µJ (on), 349µJ (off) |
| Test Condition | 390V, 30A, 10Ohm, 15V |
| Gate Charge | 126 nC |
| Current - Collector (Ic) (Max) | 70 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 230 A |
| Power - Max | 250 W |
