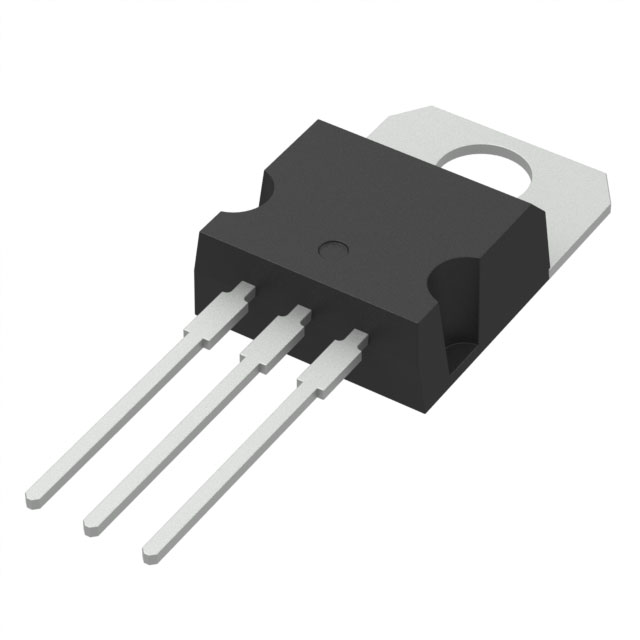

STGP15H60DF
IGBT 600V 30A 115W TO220Manufacturer: STMicroelectronics
Categories: Single IGBTs
Quality Control: Learn More
IGBT Trench Field Stop 600 V 30 A 115 W Through Hole TO-220
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 103 ns |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 15A |
| Supplier Device Package | TO-220 |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 24.5ns/118ns |
| Switching Energy | 136µJ (on), 207µJ (off) |
| Test Condition | 400V, 15A, 10Ohm, 15V |
| Gate Charge | 81 nC |
| Current - Collector (Ic) (Max) | 30 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 60 A |
| Power - Max | 115 W |
