STGHU30M65DF2AG
AUTOMOTIVE-GRADE TRENCH GATE FIEManufacturer: STMicroelectronics
Categories: Single IGBTs
Quality Control: Learn More

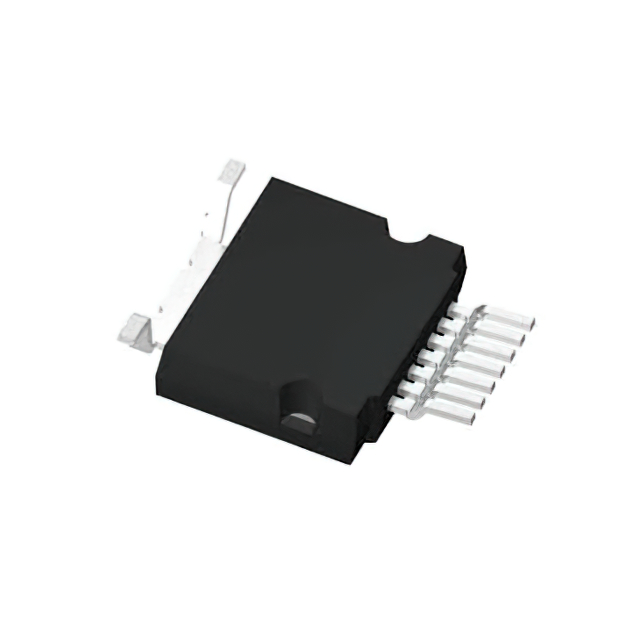

IGBT Trench Field Stop 650 V 84 A 441 W Surface Mount HU3PAK
Additional Information
Series: MRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 223 ns |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 30A |
| Supplier Device Package | HU3PAK |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 22ns/151ns |
| Switching Energy | 210µJ (on), 1.147mJ (off) |
| Test Condition | 400V, 30A, 10Ohm, 15V |
| Gate Charge | 90 nC |
| Grade | Automotive |
| Current - Collector (Ic) (Max) | 84 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector Pulsed (Icm) | 120 A |
| Power - Max | 441 W |
| Qualification | AEC-Q101 |
