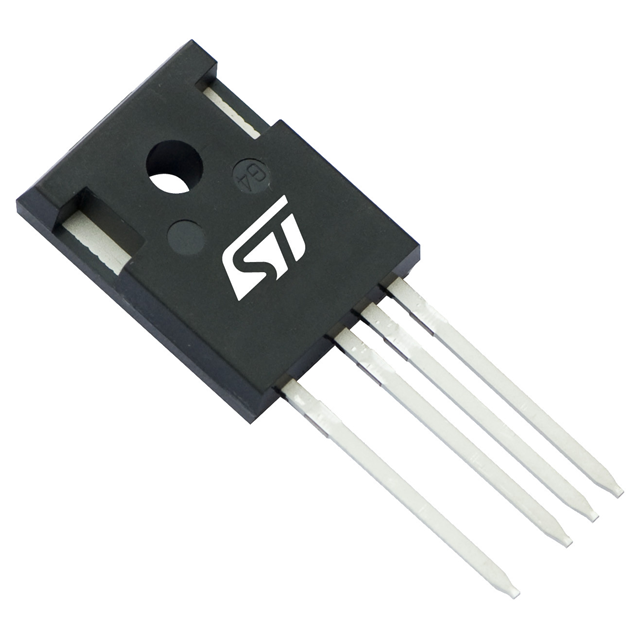

STW68N65DM6-4AG
MOSFET N-CH 650V 72A TO247-4Manufacturer: STMicroelectronics
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 650 V 72A (Tc) 480W (Tc) Through Hole TO-247-4
Additional Information
Series: MDmesh™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-4 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 72A (Tc) |
| Rds On (Max) @ Id, Vgs | 39mOhm @ 36A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 480W (Tc) |
| Vgs(th) (Max) @ Id | 4.75V @ 250µA |
| Supplier Device Package | TO-247-4 |
| Grade | Automotive |
| Vgs (Max) | ±25V |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 118 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5900 pF @ 100 V |
| Qualification | AEC-Q101 |
