STW16NK60Z
MOSFET N-CH 600V 14A TO247-3Manufacturer: STMicroelectronics
Categories: Single FETs, MOSFETs
Quality Control: Learn More

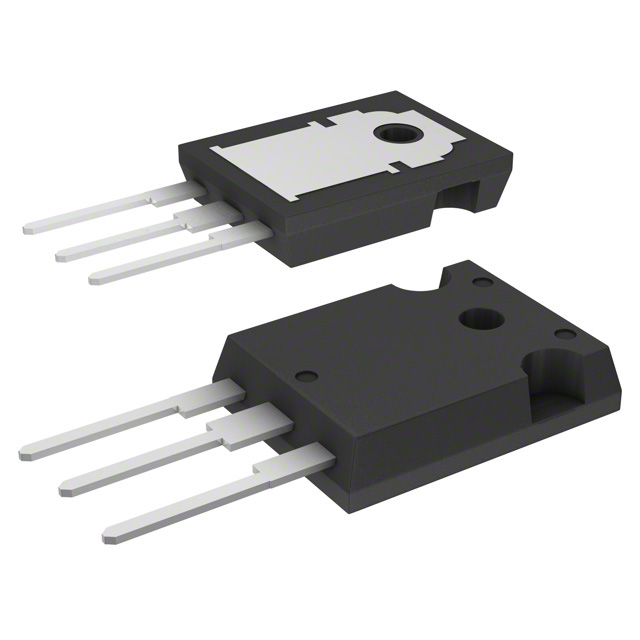

STMicroelectronics STW16NK60Z SuperMESH™ N-Channel Power MOSFET with a 600V drain-source voltage and 14A continuous drain current at 25°C. This device features a low Rds(on) of 420mOhm maximum at 7A, 10V, and a gate charge of 86 nC maximum at 10V. The STW16NK60Z is housed in a TO-247-3 package, suitable for through-hole mounting, and offers a maximum power dissipation of 190W. Its high operating junction temperature of 150°C makes it suitable for applications in power supplies, motor control, and lighting.
Additional Information
Series: SuperMESH™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 14A (Tc) |
| Rds On (Max) @ Id, Vgs | 420mOhm @ 7A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 190W (Tc) |
| Vgs(th) (Max) @ Id | 4.5V @ 50µA |
| Supplier Device Package | TO-247-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 86 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2650 pF @ 25 V |
