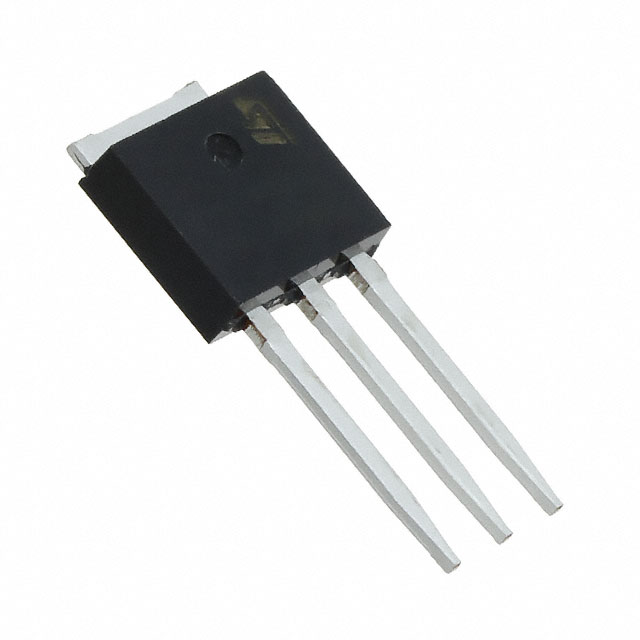

STU6N90K5
MOSFET N-CH 900V 6A IPAKManufacturer: STMicroelectronics
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 900 V 6A (Tc) 110W (Tc) Through Hole IPAK (TO-251)
Additional Information
Series: MDmesh™ K5RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-251-3 Long Leads, IPak, TO-251AB |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 6A (Tc) |
| Rds On (Max) @ Id, Vgs | 1.1Ohm @ 3A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 110W (Tc) |
| Vgs(th) (Max) @ Id | 5V @ 100µA |
| Supplier Device Package | IPAK (TO-251) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 900 V |
Request a Quote
