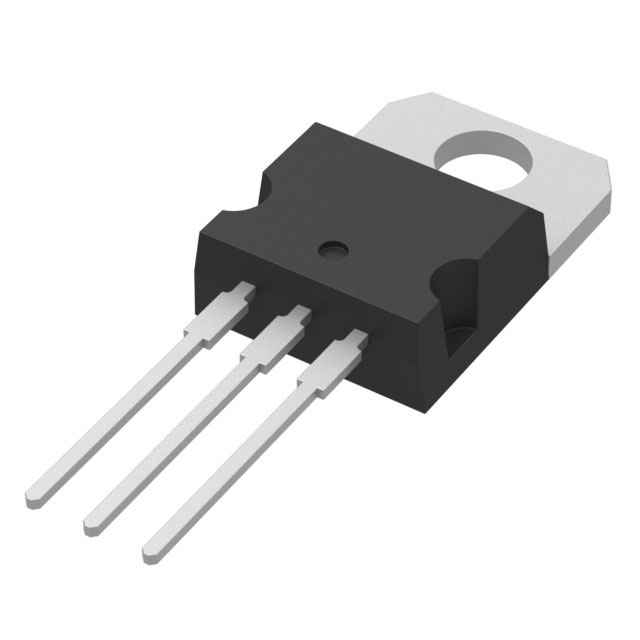

STP80N1K1K6
Linear IC'sManufacturer: STMicroelectronics
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 800 V 5A (Tc) 62W (Tc) Through Hole TO-220
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 5A (Tc) |
| Rds On (Max) @ Id, Vgs | 1.1Ohm @ 1.7A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 62W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 50µA |
| Supplier Device Package | TO-220 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 800 V |
| Gate Charge (Qg) (Max) @ Vgs | 5.7 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 300 pF @ 400 V |
Request a Quote
