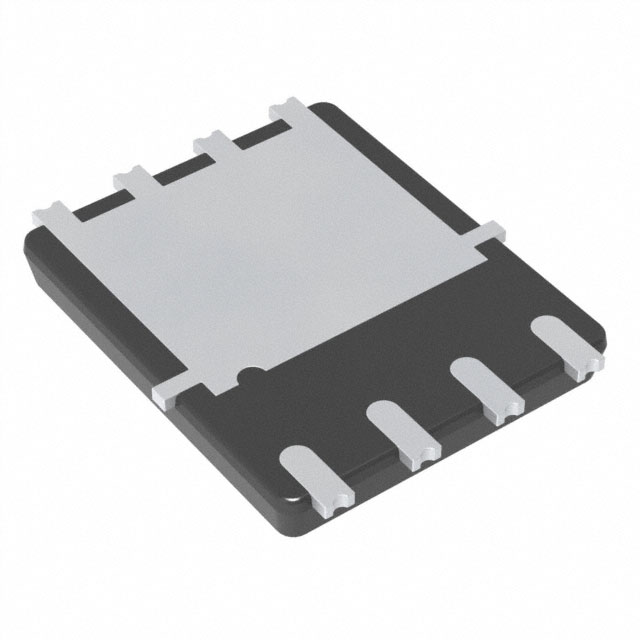

STLD200N4F6AG
MOSFET N-CH 40V 120A POWERFLATManufacturer: STMicroelectronics
Categories: Single FETs, MOSFETs
Quality Control: Learn More
STMicroelectronics STripFET™ F6 series N-Channel MOSFET, part number STLD200N4F6AG, is a 40V device featuring a 1.5mOhm maximum Rds(on) at 75A and 10V Vgs. This surface mount component, packaged in an 8-PowerWDFN PowerFlat™ (5x6) Dual Side, offers a continuous drain current of 120A (Tc) and a maximum power dissipation of 158W (Tc). Key electrical characteristics include a gate charge of 172 nC at 10V and input capacitance of 10700 pF at 10V. Designed for automotive applications and qualified to AEC-Q101, this MOSFET operates across a temperature range of -55°C to 175°C (TJ). Its robust design makes it suitable for demanding automotive power management systems.
Additional Information
Series: STripFET™ F6RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerWDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 120A (Tc) |
| Rds On (Max) @ Id, Vgs | 1.5mOhm @ 75A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 158W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Supplier Device Package | PowerFlat™ (5x6) Dual Side |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 6.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 172 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 10700 pF @ 10 V |
| Qualification | AEC-Q101 |
