STL9P4LF6AG
DISCRETEManufacturer: STMicroelectronics
Categories: Single FETs, MOSFETs
Quality Control: Learn More

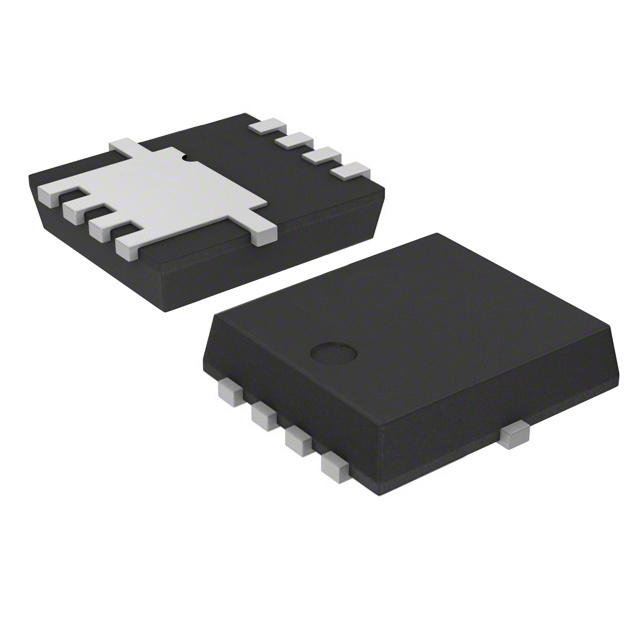

STMicroelectronics STL9P4LF6AG is a P-Channel MOSFET designed for high-efficiency power switching applications. This device features a 40V drain-source voltage (Vdss) and a continuous drain current (Id) of 31A at 25°C. The on-resistance (Rds On) is a maximum of 26mOhm at 4A and 10V gate-source voltage (Vgs). With a maximum power dissipation of 50W at a case temperature, this MOSFET is suitable for demanding thermal environments. It offers a gate charge (Qg) of 48nC at 4.5V Vgs and input capacitance (Ciss) of 2540pF at 25V Vds. The STL9P4LF6AG is housed in an 8-PowerVDFN package, specifically the 3.3x3.3mm PowerFlat™ footprint, enabling efficient surface mounting. This component is qualified to AEC-Q101 standards, making it appropriate for automotive and industrial applications. The operating temperature range is -55°C to 150°C (TJ), with a maximum Vgs of ±18V and a threshold voltage (Vgs(th)) of 2.5V at 250µA.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 31A (Tc) |
| Rds On (Max) @ Id, Vgs | 26mOhm @ 4A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 50W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | PowerFlat™ (3.3x3.3) |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±18V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 48 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2540 pF @ 25 V |
| Qualification | AEC-Q101 |
