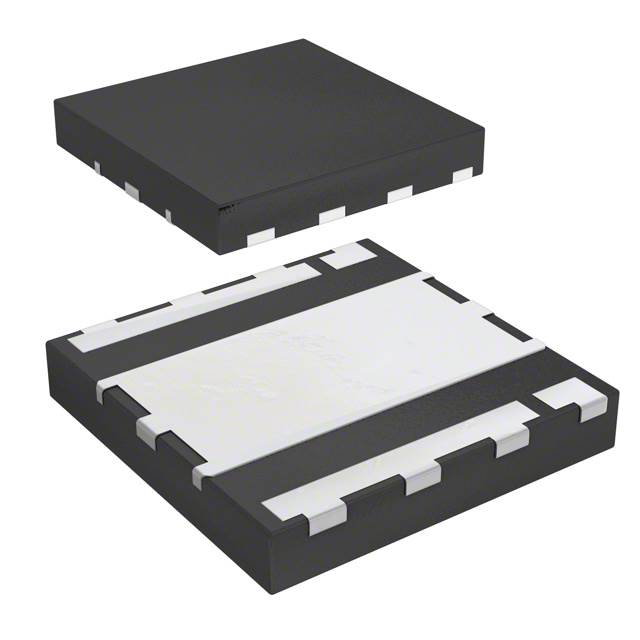

STL8N65M5
MOSFET N-CH 650V 7A POWERFLATManufacturer: STMicroelectronics
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The STMicroelectronics MDmesh™ V series STL8N65M5 is a 650V N-Channel Power MOSFET. This device features a low on-resistance of 600mOhm maximum at 3.5A and 10V gate drive. It offers a continuous drain current of 7A at 25°C case temperature and a maximum junction temperature of 150°C. The STL8N65M5 is housed in a PowerFLAT™ (5x5) package, specifically a 14-PowerVQFN, suitable for surface mounting. Typical applications for this component include power factor correction, switch mode power supplies, and high voltage switching in industrial and consumer electronics. Gate charge is specified at 15 nC maximum at 10V, with input capacitance (Ciss) at 690 pF maximum at 100V. This STMicroelectronics MOSFET is supplied on tape and reel.
Additional Information
Series: MDmesh™ VRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-PowerVQFN |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 1.4A (Ta), 7A (Tc) |
| Rds On (Max) @ Id, Vgs | 600mOhm @ 3.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta), 70W (Tc) |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Supplier Device Package | PowerFLAT™ (5x5) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±25V |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 15 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 690 pF @ 100 V |
