STL8N10LF3
MOSFET N CH 100V 20A PWRFLT5X6Manufacturer: STMicroelectronics
Categories: Single FETs, MOSFETs
Quality Control: Learn More

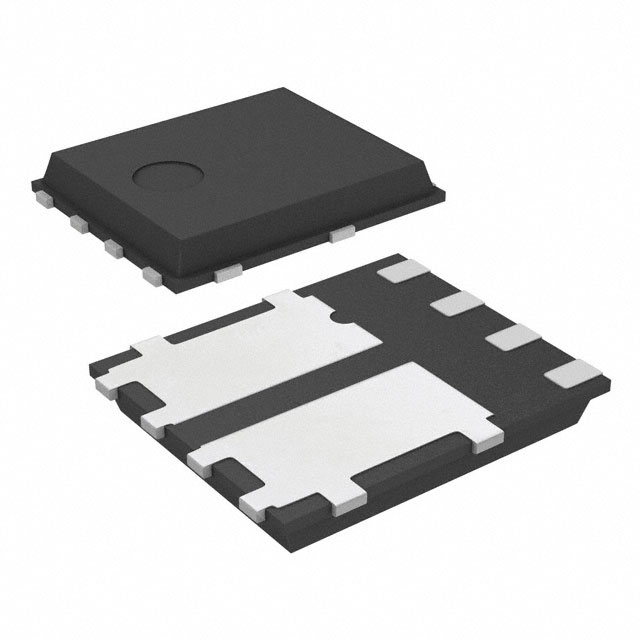

N-Channel 100 V 20A (Tc) 4.3W (Ta), 70W (Tc) Surface Mount PowerFlat™ (5x6)
Additional Information
Series: STripFET™ IIIRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 4A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 4.3W (Ta), 70W (Tc) |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | PowerFlat™ (5x6) |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 20.5 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 970 pF @ 25 V |
| Qualification | AEC-Q101 |
