STL70N4LLF5
MOSFET N-CH 40V 70A POWERFLATManufacturer: STMicroelectronics
Categories: Single FETs, MOSFETs
Quality Control: Learn More
STMicroelectronics STL70N4LLF5 is a 40V N-Channel Power MOSFET from the STripFET™ V series, designed for high-efficiency power switching applications. This AEC-Q101 qualified device offers a continuous drain current capability of 70A (Tc) with a low Rds(on) of 6.5mOhm at 9A, 10V. The device features a wettable flank PowerFlat™ (5x6) package, enabling robust surface mounting for enhanced reliability. Key electrical characteristics include a gate charge (Qg) of 13nC at 4.5V and an input capacitance (Ciss) of 1800pF at 25V. The STL70N4LLF5 is suitable for demanding automotive and industrial applications requiring efficient power management.
Additional Information
Series: STripFET™ VRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 70A (Tc) |
| Rds On (Max) @ Id, Vgs | 6.5mOhm @ 9A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 72W (Tc) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | PowerFlat™ (5x6) |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±22V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1800 pF @ 25 V |
| Qualification | AEC-Q101 |
Request a Quote
Clients Also Buy
STD86N3LH5
MOSFET N-CH 30V 80A DPAK
STL10N3LLH5
MOSFET N-CH 30V 9A POWERFLAT

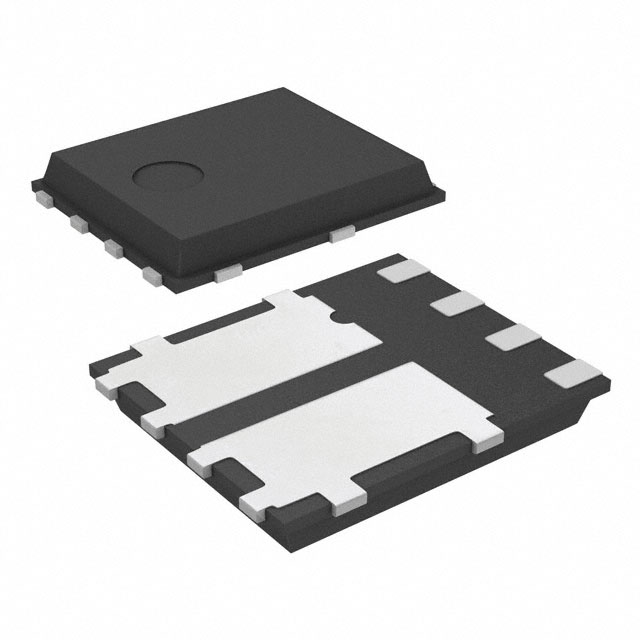

STL40DN3LLH5
