STL35N6F3
MOSFET N-CH 60V 35A POWERFLATManufacturer: STMicroelectronics
Categories: Single FETs, MOSFETs
Quality Control: Learn More

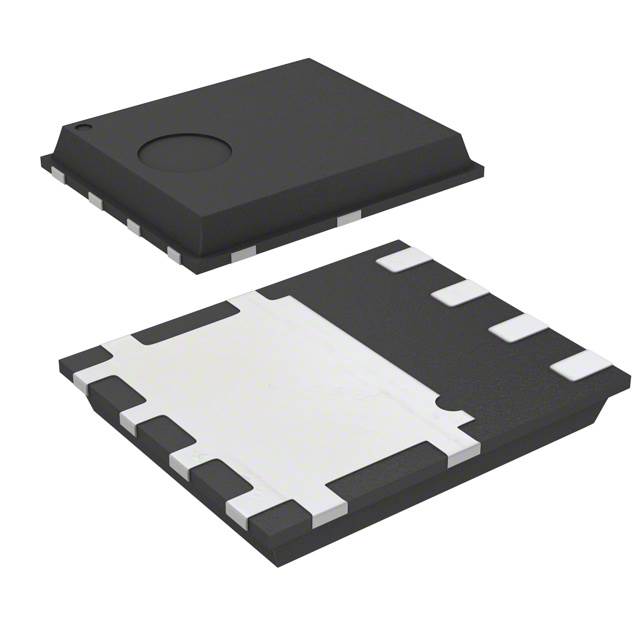

STMicroelectronics STL35N6F3 is an N-Channel Power MOSFET from the STripFET™ III series, designed for high-efficiency power switching applications. This component features a 60V drain-source voltage (Vdss) and a continuous drain current (Id) of 35A at 25°C (Tc). The device offers a low on-resistance (Rds On) of 22mOhm at 3A and 10V Vgs, ensuring minimal conduction losses. It is housed in an 8-PowerVDFN (PowerFlat™ 5x6) surface-mount package, enabling excellent thermal performance with a maximum power dissipation of 80W (Tc). The operating junction temperature range is -55°C to 175°C. This MOSFET is suitable for use in automotive, industrial, and consumer electronics power management systems.
Additional Information
Series: STripFET™ IIIRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 35A (Tc) |
| Rds On (Max) @ Id, Vgs | 22mOhm @ 3A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 5W (Ta), 80W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | PowerFlat™ (5x6) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
