STL325N4LF8AG
AUTOMOTIVE-GRADE N-CHANNEL 40 VManufacturer: STMicroelectronics
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The STMicroelectronics STL325N4LF8AG is an automotive-grade N-channel MOSFET designed for high-power switching applications. This component features a 40 V drain-to-source voltage and a continuous drain current capability of 373 A at 25°C, with a maximum power dissipation of 188 W at the same temperature. The STL325N4LF8AG offers a low on-resistance of 0.75 mOhm at 60 A and 10 V gate-source voltage. Its AEC-Q101 qualification ensures reliability in demanding automotive environments. The device is packaged in an 8-PowerVDFN format with Wettable Flank technology for enhanced solder joint reliability, and is supplied on tape and reel. Key parameters include a gate charge of 95 nC at 10 V and input capacitance of 7657 pF at 25 V. This MOSFET is suitable for applications within the automotive sector.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

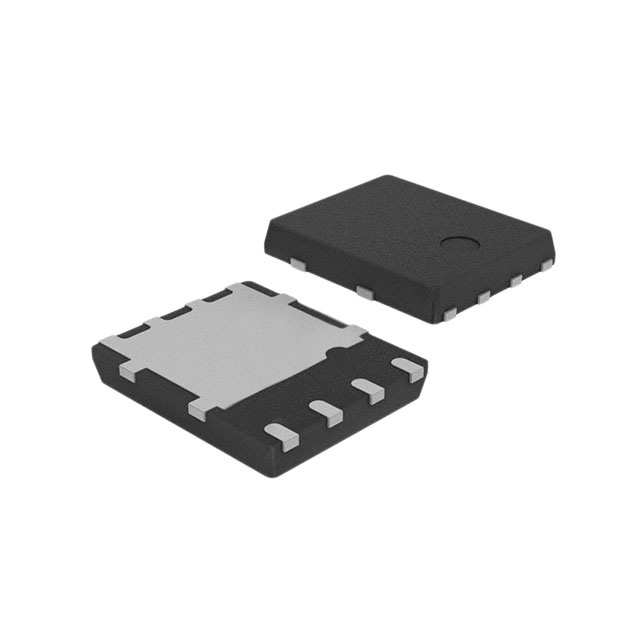

| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 373A (Tc) |
| Rds On (Max) @ Id, Vgs | 0.75mOhm @ 60A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 188W (Tc) |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Supplier Device Package | PowerFlat™ (5x6) |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±16V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 95 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 7657 pF @ 25 V |
| Qualification | AEC-Q101 |
