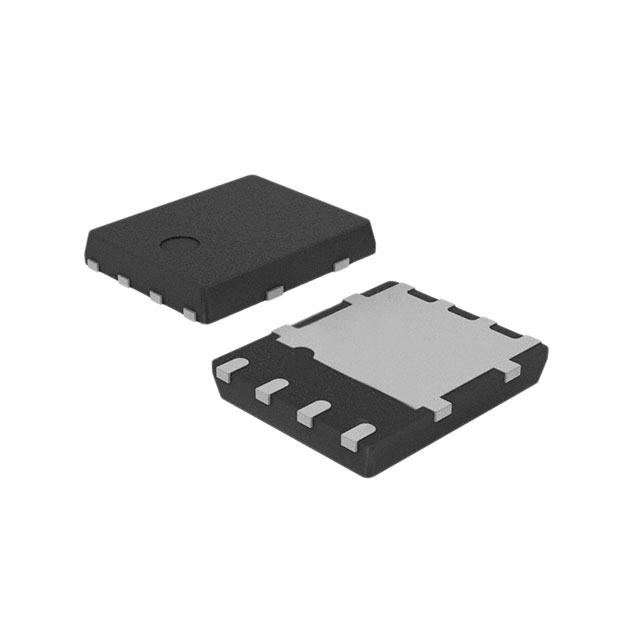

STL105N4LF7AG
MOSFET N-CH 40V 105A POWERFLATManufacturer: STMicroelectronics
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The STMicroelectronics STripFET™ F7 series STL105N4LF7AG is an N-channel MOSFET designed for high-efficiency power management. This component features a 40V drain-source breakdown voltage and a continuous drain current capability of 105A at 25°C (Tc), with a maximum power dissipation of 94W (Tc). The low on-resistance of 4.5mOhm maximum at 11.5A and 10V gate-source voltage, achieved with a 10V gate drive, minimizes conduction losses. Key parameters include a gate charge (Qg) of 23.3 nC max at 10V and input capacitance (Ciss) of 1500 pF max at 25V. It is housed in an 8-PowerVDFN (PowerFlat™ 5x6) package, suitable for surface mounting. The STL105N4LF7AG is AEC-Q101 qualified and rated for automotive applications, operating within a junction temperature range of -55°C to 175°C.
Additional Information
Series: STripFET™ F7RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 105A (Tc) |
| Rds On (Max) @ Id, Vgs | 4.5mOhm @ 11.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 94W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | PowerFlat™ (5x6) |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 23.3 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1500 pF @ 25 V |
| Qualification | AEC-Q101 |
