STK800
MOSFET N-CH 30V 20A POLARPAKManufacturer: STMicroelectronics
Categories: Single FETs, MOSFETs
Quality Control: Learn More

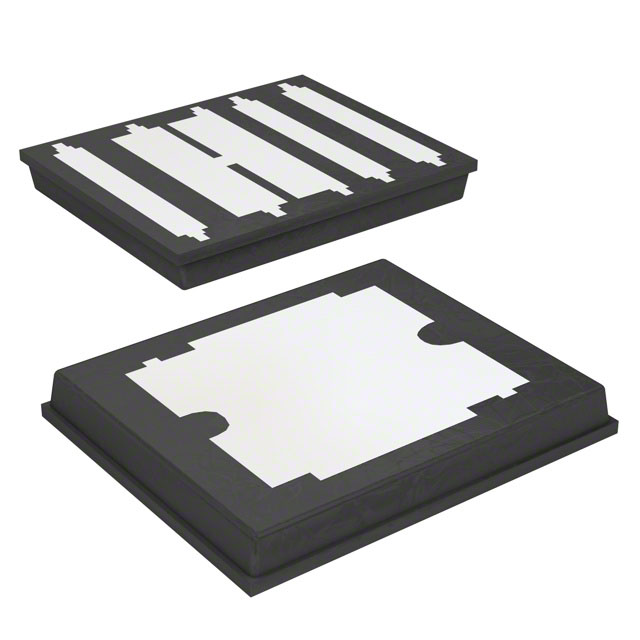

STMicroelectronics' STK800 is an N-Channel STripFET™ MOSFET featuring a 30V drain-source voltage (Vdss) and a continuous drain current (Id) of 20A at 25°C (Tc). This component offers a low on-resistance (Rds On) of 7.8mOhm maximum at 10A and 10V, with a gate threshold voltage (Vgs(th)) of 2.5V maximum at 250µA. The gate charge (Qg) is rated at 13.4 nC maximum at 4.5V, and input capacitance (Ciss) is 1380 pF maximum at 25V. The device operates with a gate-source voltage (Vgs) range of ±16V, and the Rds On can be achieved with drive voltages between 4.5V and 10V. Power dissipation is 5.2W (Tc). The STK800 is housed in a PolarPak® surface mount package and is supplied on Tape & Reel (TR). This MOSFET is suitable for applications in automotive and industrial power management.
Additional Information
Series: STripFET™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | PolarPak® |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
| Rds On (Max) @ Id, Vgs | 7.8mOhm @ 10A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 5.2W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | PolarPak® |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±16V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 13.4 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1380 pF @ 25 V |
