STK38N3LLH5
MOSFET N-CH 30V 38A POLARPAKManufacturer: STMicroelectronics
Categories: Single FETs, MOSFETs
Quality Control: Learn More
The STMicroelectronics STK38N3LLH5 is an N-Channel MOSFET from the STripFET™ V series, featuring a 30V drain-source breakdown voltage and a continuous drain current capability of 38A at 25°C (Tc). This device boasts a low on-resistance of 1.55mOhm at 19A and 10V Vgs, with a gate charge of 41.7 nC at 4.5V. Designed for efficient power management, it offers a maximum power dissipation of 5.2W (Tc) and operates within a temperature range of -55°C to 150°C. The component utilizes advanced MOSFET technology and is housed in a surface-mount PolarPak® package, supplied on tape and reel. Key parameters include an input capacitance (Ciss) of 4640 pF at 25V and a threshold voltage (Vgs(th)) of 2.5V at 250µA. This MOSFET is suitable for applications in automotive and industrial power systems.
Additional Information
Series: STripFET™ VRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

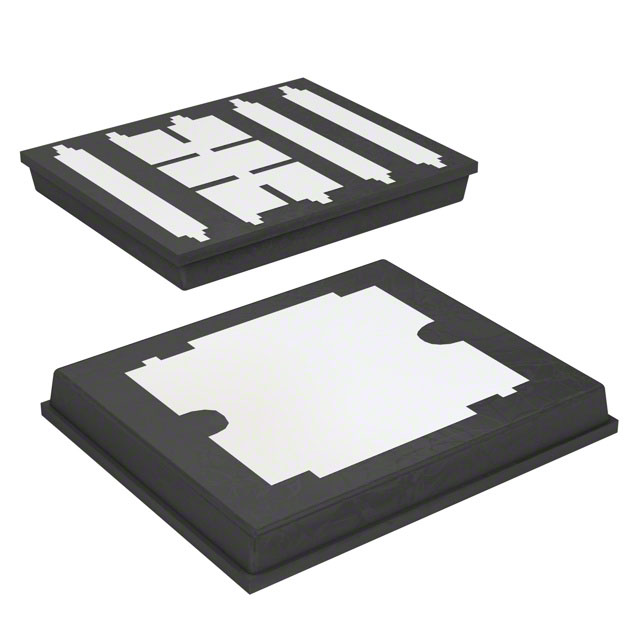

| Package / Case | PolarPak® |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 38A (Tc) |
| Rds On (Max) @ Id, Vgs | 1.55mOhm @ 19A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 5.2W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | PolarPak® |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±22V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 41.7 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 4640 pF @ 25 V |
