STF80N600K6
N-CHANNEL 800 V, 515 MOHM TYP.,Manufacturer: STMicroelectronics
Categories: Single FETs, MOSFETs
Quality Control: Learn More

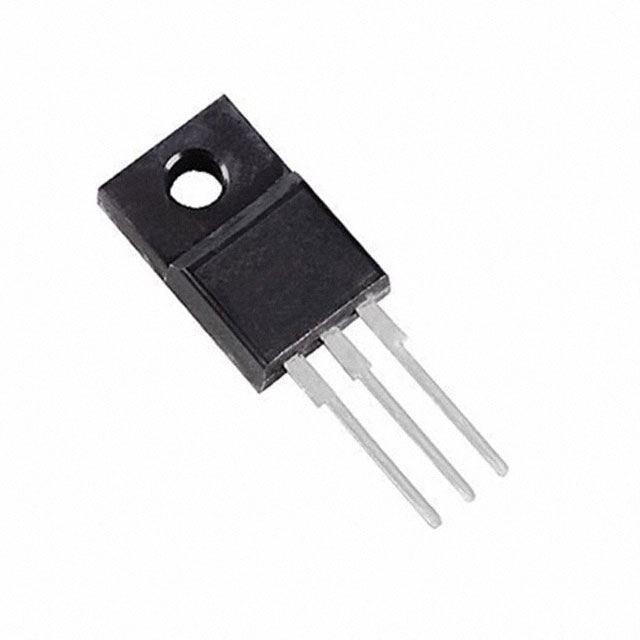

N-Channel 800 V 7A (Tc) 23W (Tc) Through Hole TO-220FP
Additional Information
Series: ECOPACK®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 99 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-220-3 Full Pack |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 7A (Tc) |
| Rds On (Max) @ Id, Vgs | 600mOhm @ 3A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 23W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 100µA |
| Supplier Device Package | TO-220FP |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 800 V |
| Gate Charge (Qg) (Max) @ Vgs | 10.7 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 540 pF @ 400 V |
| Qualification | - |
