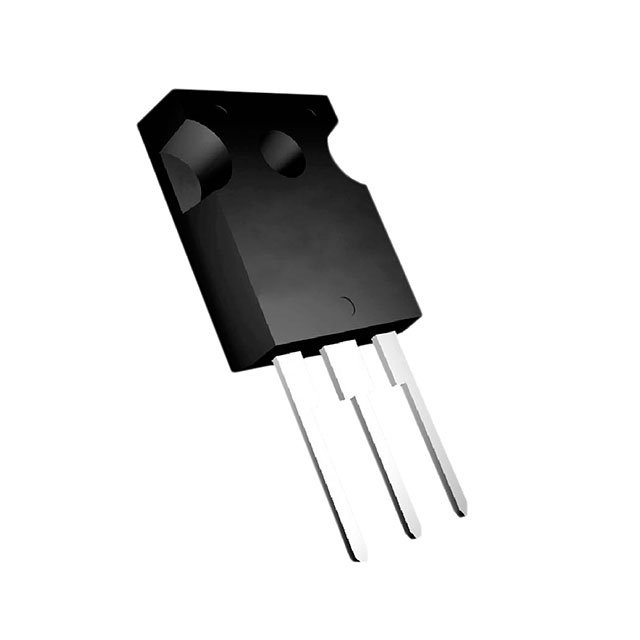

STF33N60DM2
MOSFET N-CH 650V 24A TO220FPManufacturer: STMicroelectronics
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 650 V 24A (Tc) 35W (Tc) Through Hole TO-220FP
Additional Information
Series: MDmesh™ DM2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 Full Pack |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 24A (Tc) |
| Rds On (Max) @ Id, Vgs | 130mOhm @ 12A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 35W (Tc) |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Supplier Device Package | TO-220FP |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±25V |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 43 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1870 pF @ 100 V |
