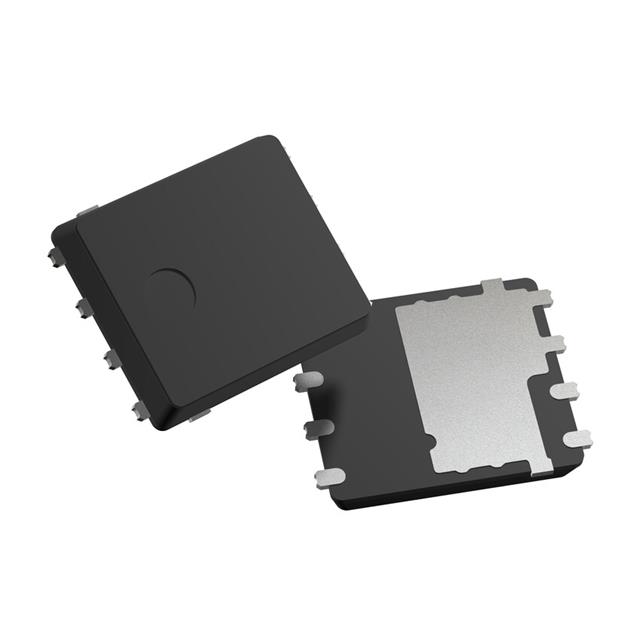

SGT120R65AL
650 V, 75 MOHM TYP., 15 A, E-MODManufacturer: STMicroelectronics
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 650 V 15A (Tc) 192W (Tc) Surface Mount PowerFlat™ (5x6) HV
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | GaNFET (Gallium Nitride) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 15A (Tc) |
| Rds On (Max) @ Id, Vgs | 120mOhm @ 5A, 6V |
| FET Feature | - |
| Power Dissipation (Max) | 192W (Tc) |
| Vgs(th) (Max) @ Id | 2.6V @ 12mA |
| Supplier Device Package | PowerFlat™ (5x6) HV |
| Drive Voltage (Max Rds On, Min Rds On) | 6V |
| Vgs (Max) | +6V, -10V |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 3 nC @ 6 V |
| Input Capacitance (Ciss) (Max) @ Vds | 125 pF @ 400 V |
