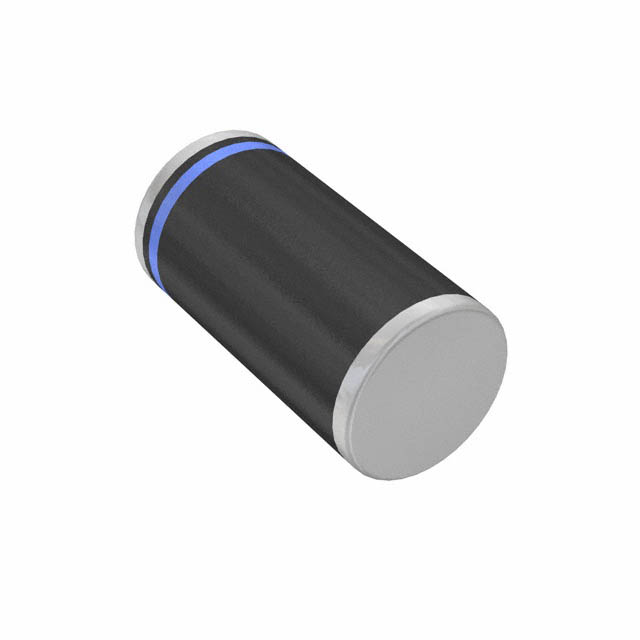

TMBYV10-60FILM
DIODE SCHOTTKY 60V 1A MELFManufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More
STMicroelectronics TMBYV10-60FILM is a 60V, 1A Schottky diode in a MELF package (DO-213AB). This device offers a low forward voltage of 700 mV at 1A and a reverse leakage current of 500 µA at 60V. Designed for efficient power rectification, it is suitable for applications requiring fast switching characteristics. The TMBYV10-60FILM is packaged on tape and reel, facilitating automated assembly processes. Its robust construction and performance parameters make it a reliable choice for power management, telecommunications, and automotive electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-213AB, MELF |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | MELF |
| Operating Temperature - Junction | -65°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Voltage - Forward (Vf) (Max) @ If | 700 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 500 µA @ 60 V |
