STTH8R06FP
DIODE GEN PURP 600V 8A TO220FPACManufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More
Diode 600 V 8A Through Hole TO-220FPAC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-2 Full Pack |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 45 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 8A |
| Supplier Device Package | TO-220FPAC |
| Operating Temperature - Junction | 175°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.9 V @ 8 A |
| Current - Reverse Leakage @ Vr | 30 µA @ 600 V |
Request a Quote
Clients Also Buy

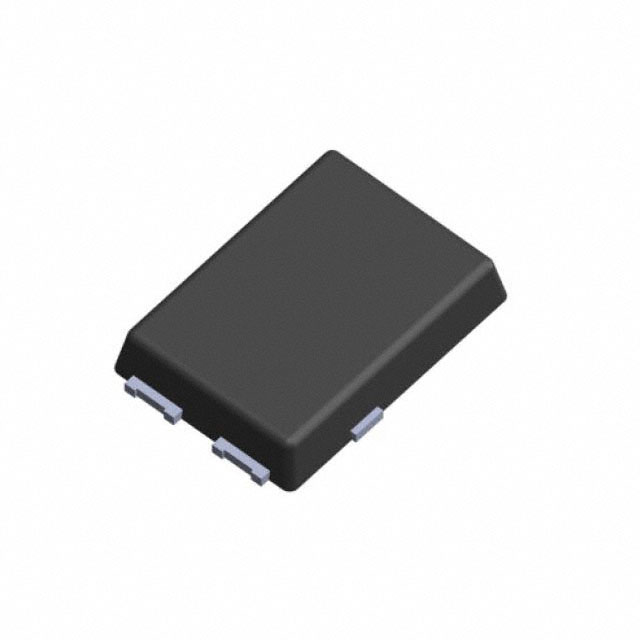

STPS10M60SF
