STTH8R03D
DIODE GEN PURP 300V 8A TO220ACManufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More

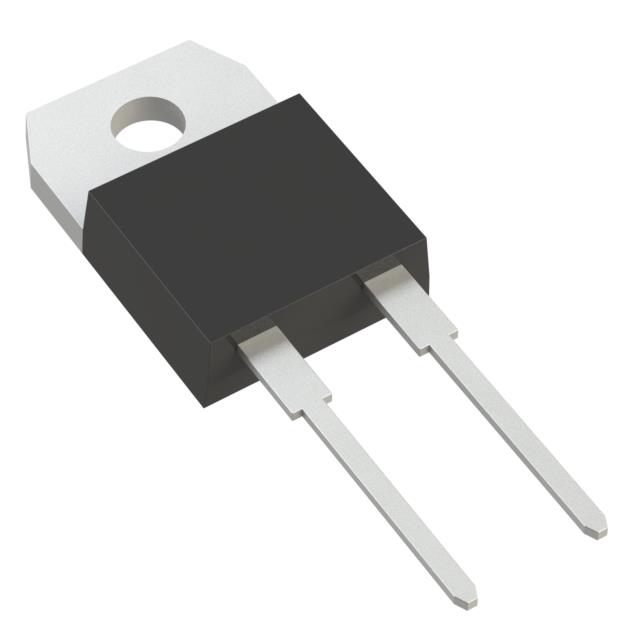

Diode 300 V 8A Through Hole TO-220AC
Additional Information
Series: TURBOSWITCH™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-220-2 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 30 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 8A |
| Supplier Device Package | TO-220AC |
| Operating Temperature - Junction | 175°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 300 V |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 8 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 300 V |
