STTH812G-TR
DIODE GEN PURP 1.2KV 8A D2PAKManufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More
The STMicroelectronics STTH812G-TR is a high-performance general-purpose diode designed for demanding applications. Featuring a 1200 V reverse voltage rating and an 8 A average rectified current capability, this device is engineered for efficiency and reliability. Its fast recovery time of 100 ns makes it suitable for high-frequency switching power supplies and industrial motor control systems. The diode exhibits a low forward voltage drop of 2.2 V at 8 A and a minimal reverse leakage current of 8 µA at 1200 V. Packaged in a TO-263-3, D2PAK (2 Leads + Tab) surface-mount configuration, it offers excellent thermal performance with a maximum operating junction temperature of 175°C. This component is commonly utilized in power factor correction circuits, automotive electronics, and renewable energy systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 100 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 8A |
| Supplier Device Package | D2PAK |
| Operating Temperature - Junction | 175°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 2.2 V @ 8 A |
| Current - Reverse Leakage @ Vr | 8 µA @ 1200 V |
Request a Quote
Clients Also Buy

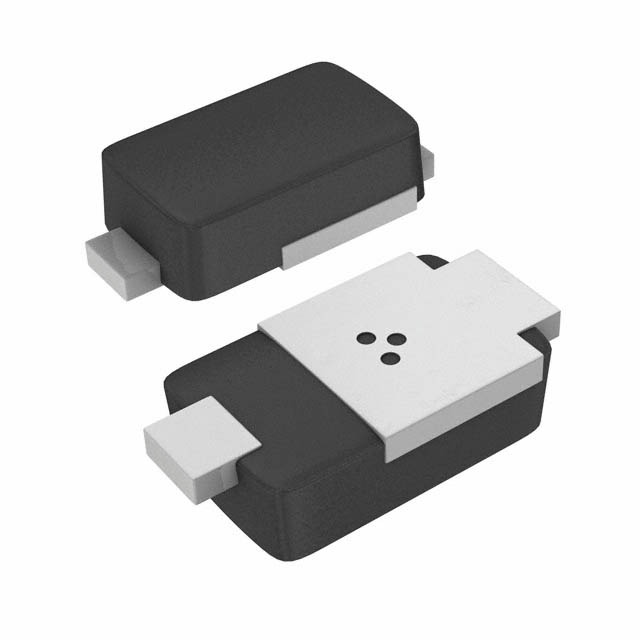

STPS1H100MF
