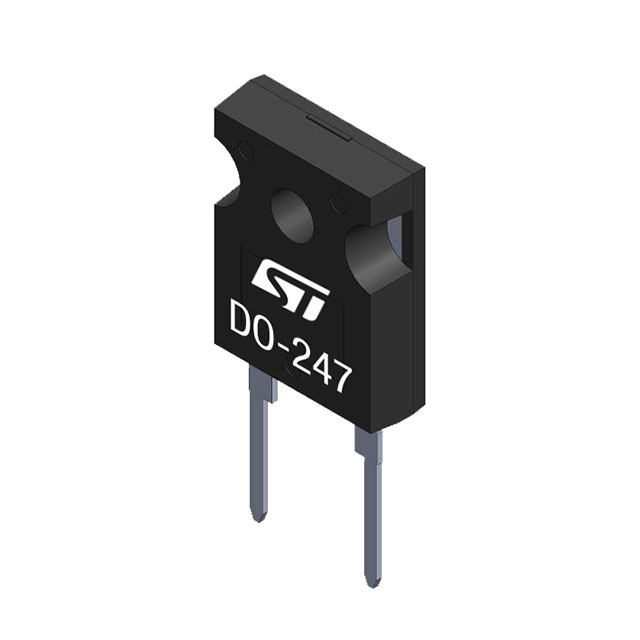

STTH60RQ06WL
DIODE GEN PURP 600V 60A DO247 LLManufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More
STMicroelectronics STTH60RQ06WL is a high-performance, fast recovery diode designed for general-purpose rectification. This component features a 600V reverse voltage rating and an average rectified forward current capability of 60A. The forward voltage drop is a maximum of 2.95V at 60A, and it exhibits a low reverse leakage of 80 µA at 600V. With a reverse recovery time of 65 ns, it is categorized as a fast recovery diode. The STTH60RQ06WL is housed in a TO-247-2 (DO-247 LL) package, suitable for through-hole mounting, and operates at a maximum junction temperature of 175°C. This diode is widely utilized in power supply applications, industrial motor control, and automotive electronics where efficient power conversion and fast switching are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-2 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 65 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 60A |
| Supplier Device Package | DO-247 LL |
| Operating Temperature - Junction | 175°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.95 V @ 60 A |
| Current - Reverse Leakage @ Vr | 80 µA @ 600 V |
Request a Quote
