STTH5BCF060
DIODE GEN PURP 600V 5A DO201ADManufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More

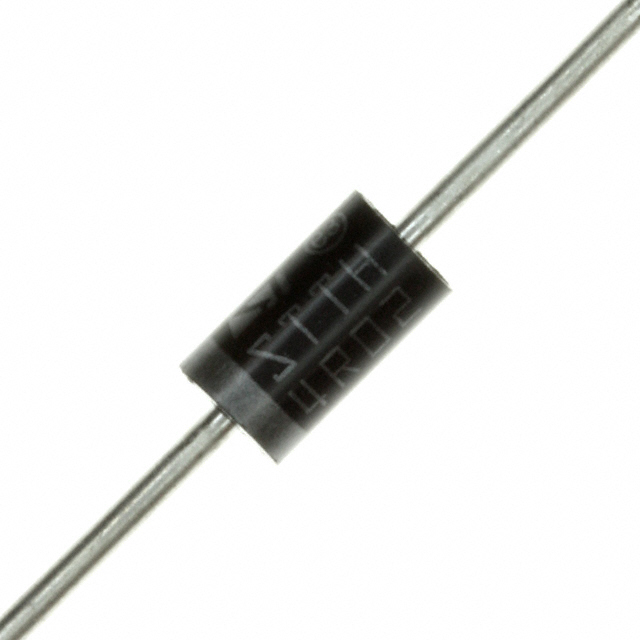

STMicroelectronics STTH5BCF060 is a fast recovery diode designed for general-purpose applications. This axial-leaded component, housed in a DO-201AD package, offers a maximum DC reverse voltage of 600 V and an average rectified current handling capability of 5 A. The forward voltage drop is specified at a maximum of 2.9 V at 5 A. With a typical reverse recovery time of 40 ns, it is classified as a fast recovery diode. This device finds utility in power supply rectification, switching circuits, and other applications requiring efficient rectification at moderate power levels. The component is supplied in Cut Tape packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | DO-201AD, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 40 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | DO-201AD |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.9 V @ 5 A |
