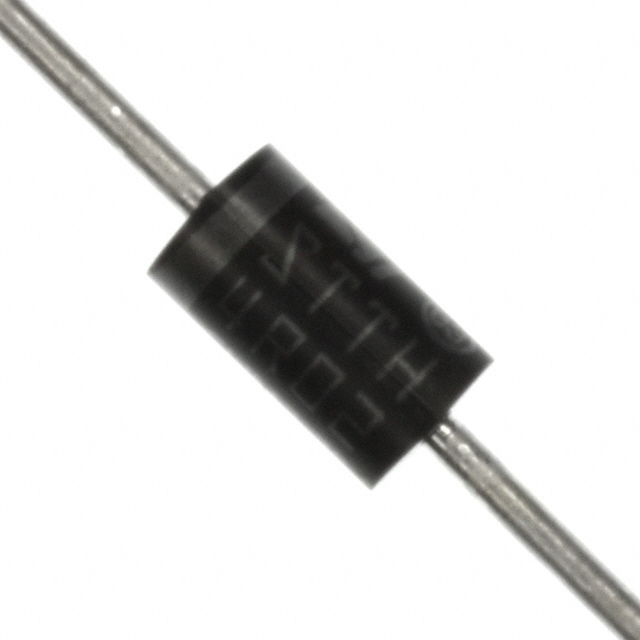

STTH4R02RL
DIODE GEN PURP 200V 4A DO201ABManufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More
STMicroelectronics STTH4R02RL is a fast-recovery rectifier diode designed for general-purpose applications. This through-hole component features a maximum repetitive peak reverse voltage of 200 V and an average rectified forward current handling capability of 4 A. The diode exhibits a low forward voltage drop of 1.25 V at 12 A and a reverse leakage current of 3 µA at its maximum reverse voltage. With a reverse recovery time of 30 ns, it is classified as a fast recovery diode, suitable for switching frequencies up to 200 mA (Io). The STTH4R02RL is housed in a DO-201AB (DO-32, Axial) package and operates across a wide junction temperature range, up to 175°C (Max). This component finds application in power supply rectification, freewheeling diode circuits, and other power switching applications within the automotive and industrial sectors. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-201AB, DO-32, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 30 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 4A |
| Supplier Device Package | DO-201AB |
| Operating Temperature - Junction | 175°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 12 A |
| Current - Reverse Leakage @ Vr | 3 µA @ 200 V |
