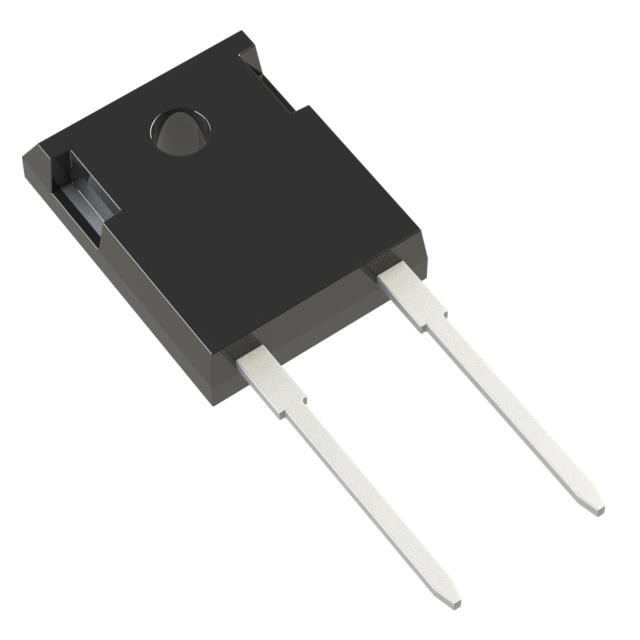

STTH30RQ06WL
DIODE GEN PURP 600V 30A DO247 LLManufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More
STMicroelectronics STTH30RQ06WL is a high-efficiency, fast recovery rectifier diode designed for demanding power applications. This ECOPACK®2 series component offers a 600V reverse voltage and a 30A average rectified current (Io). Its low forward voltage drop of 2.95V at 30A and a reverse leakage of just 40 µA at 600V contribute to efficient power conversion. With a fast reverse recovery time (trr) of 55ns, the STTH30RQ06WL is well-suited for applications requiring rapid switching, such as power supplies, industrial motor control, and automotive electronics. The diode features a maximum junction operating temperature of 175°C and is housed in a robust TO-247-2 package for effective thermal management.
Additional Information
Series: ECOPACK®2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-2 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 55 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 30A |
| Supplier Device Package | DO-247 LL |
| Operating Temperature - Junction | 175°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.95 V @ 30 A |
| Current - Reverse Leakage @ Vr | 40 µA @ 600 V |
