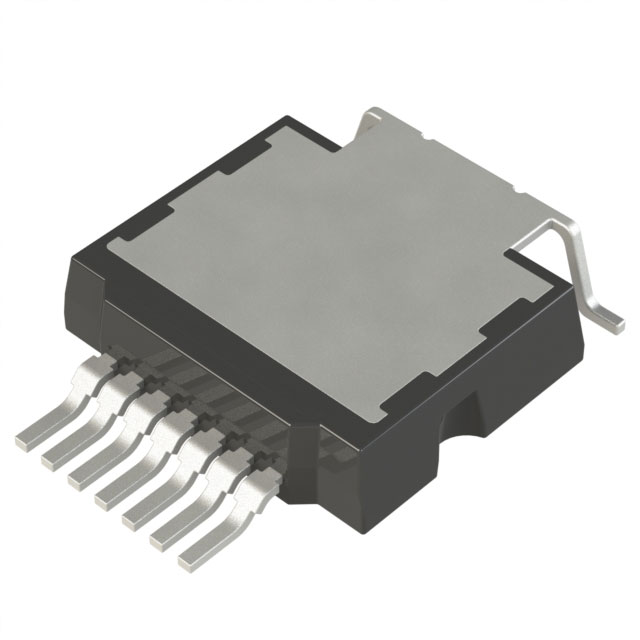

STTH30RQ06L2-TR
DIODE GEN PURP 600V 30A HU3PAKManufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More
STMicroelectronics STTH30RQ06L2-TR is a high-performance general-purpose diode featuring a 600 V reverse voltage rating and a 30 A average rectified current capability. This device utilizes standard recovery technology, delivering a reverse recovery time of 55 ns. It exhibits a maximum forward voltage of 2.95 V at 30 A and a low reverse leakage current of 40 µA at 600 V. Designed for efficient thermal management, it is housed in a HU3PAK package suitable for surface mounting. The operating junction temperature range extends to 175°C. This component is commonly employed in power factor correction, switch mode power supplies, and automotive applications. The STTH30RQ06L2-TR is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 55 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 30A |
| Supplier Device Package | HU3PAK |
| Operating Temperature - Junction | 175°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.95 V @ 30 A |
| Current - Reverse Leakage @ Vr | 40 µA @ 600 V |
