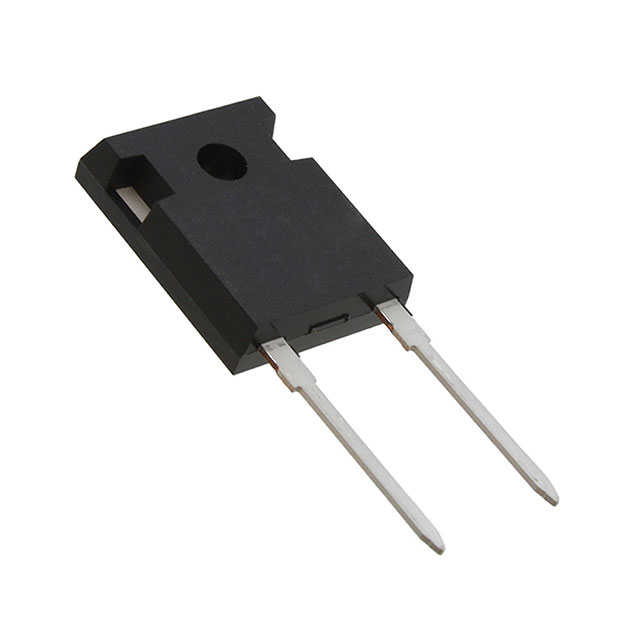

STTH30ACS06W
DIODE GEN PURP 600V 30A TO247-2Manufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More
The STMicroelectronics STTH30ACS06W is a general-purpose diode designed for high-efficiency rectification. This component features a 600 V reverse voltage rating and a substantial 30 A average rectified current handling capability. Its fast recovery time of 55 ns, coupled with a low forward voltage drop of 2.4 V at 30 A, makes it suitable for applications requiring reduced power loss. The diode exhibits a low reverse leakage current of 5 µA at its maximum reverse voltage. With a maximum junction operating temperature of 175°C, it is engineered for demanding environments. The STTH30ACS06W is provided in a TO-247-2 package, facilitating through-hole mounting. This device finds application in power supply units, industrial motor control, and renewable energy systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-2 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 55 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 30A |
| Supplier Device Package | TO-247-2 |
| Operating Temperature - Junction | 175°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 2.4 V @ 30 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V |
