STTH1210FP
DIODE GEN PURP 1KV 12A TO220FPACManufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More

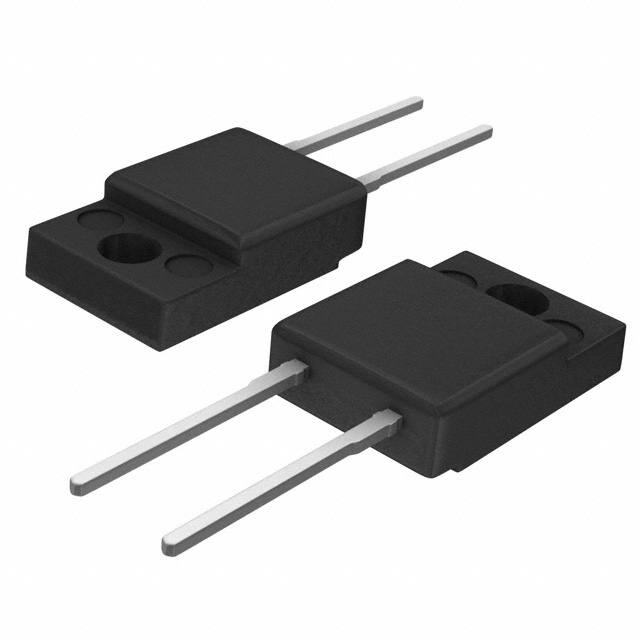

STMicroelectronics STTH1210FP is a Fast Recovery diode designed for general-purpose rectification. This TO-220FPAC packaged component offers a high reverse voltage rating of 1000 V and a continuous forward current capability of 12 A. The diode exhibits a low forward voltage of 2 V at its rated current and a typical reverse leakage of 10 µA at 1000 V. With a reverse recovery time of 90 ns, it is suitable for applications requiring efficient switching. The STTH1210FP is commonly employed in power supply units, automotive electronics, and industrial control systems. It operates at a maximum junction temperature of 175°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-2 Full Pack |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 90 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 12A |
| Supplier Device Package | TO-220FPAC |
| Operating Temperature - Junction | 175°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 2 V @ 12 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 1000 V |
