STPSC30G12WLY
AUTOMOTIVE 1200 V, 30 A SILICONManufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More

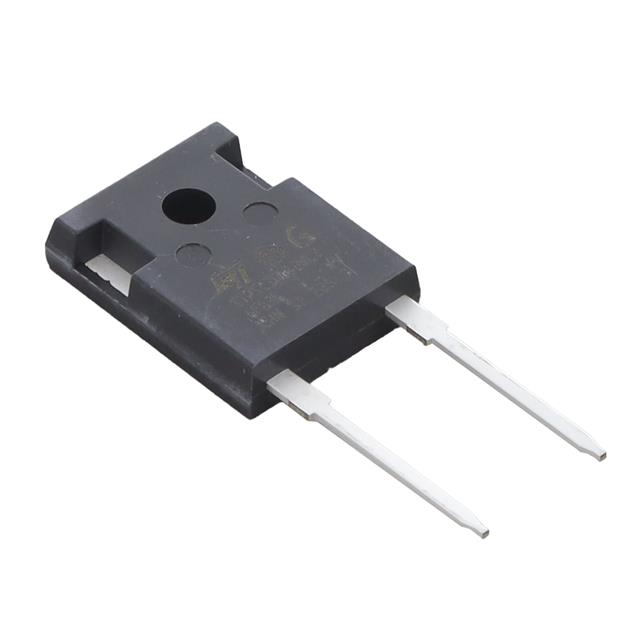

STMicroelectronics STPSC30G12WLY is a 1200V, 30A Silicon Carbide (SiC) Schottky diode designed for demanding automotive applications. This Through Hole component, housed in a TO-247-2 package (DO-247 LL), offers a low forward voltage of 1.5V at 30A and a reverse leakage of 225 µA at 1200V. With a junction operating temperature range of -55°C to 175°C and AEC-Q101 qualification, it meets stringent automotive reliability standards. The device features fast recovery characteristics, suitable for high-efficiency power conversion in electric vehicle powertrains, onboard chargers, and advanced driver-assistance systems. Its 2272pF capacitance at 0V and 1MHz is a key parameter for high-frequency switching.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-2 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 2272pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 30A |
| Supplier Device Package | DO-247 LL |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 30 A |
| Current - Reverse Leakage @ Vr | 225 µA @ 1200 V |
| Qualification | AEC-Q101 |
