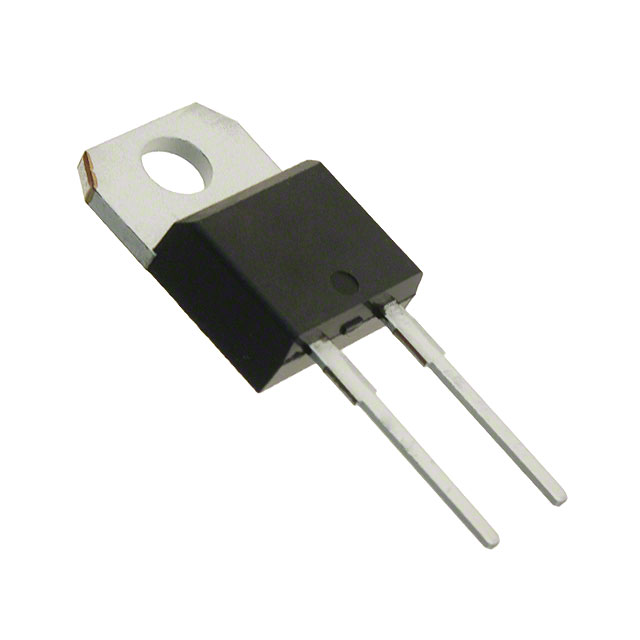

STPSC20065DI
DIODE SIC 650V 20A TO220AC INSManufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More
Diode 650 V 20A Through Hole TO-220AC ins
Additional Information
Series: ECOPACK®2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-2 Insulated, TO-220AC |
| Mounting Type | Through Hole |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 1250pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 20A |
| Supplier Device Package | TO-220AC ins |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 1.45 V @ 20 A |
| Current - Reverse Leakage @ Vr | 300 µA @ 650 V |
