STPS2L25AFN
DIODE SCHOTTKY 25V 2A SMAFLATManufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More

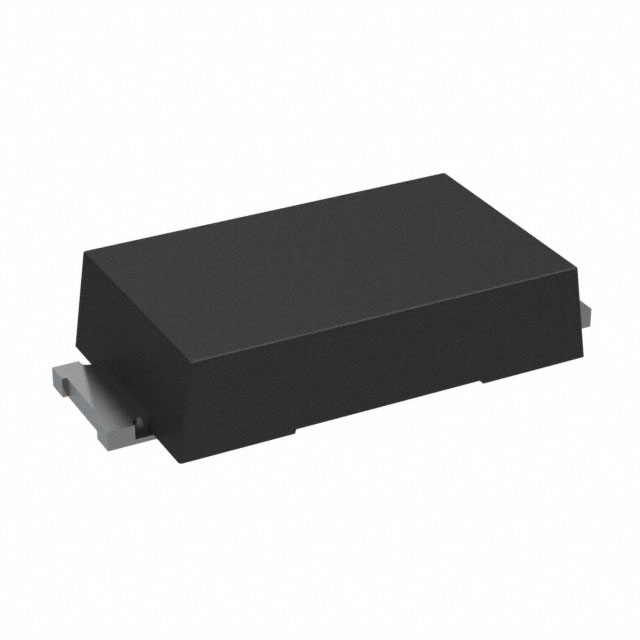

STMicroelectronics STPS2L25AFN is a Schottky rectifier diode with a 25V reverse voltage rating and 2A average rectified current capability. This component features a low forward voltage drop of 450mV at 2A and a reverse leakage current of 90µA at 25V. Designed for surface mounting, it utilizes the SMAflat Notch package (DO-221AC) for efficient thermal performance and compact integration. The STPS2L25AFN's fast switching characteristics make it suitable for applications in power supplies, automotive systems, and industrial control. It is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-221AC, SMA Flat Leads |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 2A |
| Supplier Device Package | SMAflat Notch |
| Operating Temperature - Junction | 150°C |
| Voltage - DC Reverse (Vr) (Max) | 25 V |
| Voltage - Forward (Vf) (Max) @ If | 450 mV @ 2 A |
| Current - Reverse Leakage @ Vr | 90 µA @ 25 V |
