STPS20LCD80CB-TR
DIODE SCHOTTKY 80V 10A DPAKManufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More
STMicroelectronics STPS20LCD80CB-TR is an 80V, 10A Schottky rectifier in a DPAK package. This surface mount device offers a low forward voltage of 880mV at 10A and a reverse leakage current of 15µA at 80V. The component operates with a maximum junction temperature of 175°C. Its fast recovery characteristics make it suitable for high-frequency applications. This rectifier is commonly utilized in power supply units, voltage clamping, and reverse polarity protection circuits across industries such as automotive, industrial automation, and consumer electronics. The STPS20LCD80CB-TR is supplied in Tape & Reel packaging.
Additional Information
Series: #456RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 10A |
| Supplier Device Package | DPAK |
| Operating Temperature - Junction | 175°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 80 V |
| Voltage - Forward (Vf) (Max) @ If | 880 mV @ 10 A |
| Current - Reverse Leakage @ Vr | 15 µA @ 80 V |
Request a Quote
Clients Also Buy
ZL30271LDG1
10-OUTPUT CLOCK GENERATOR

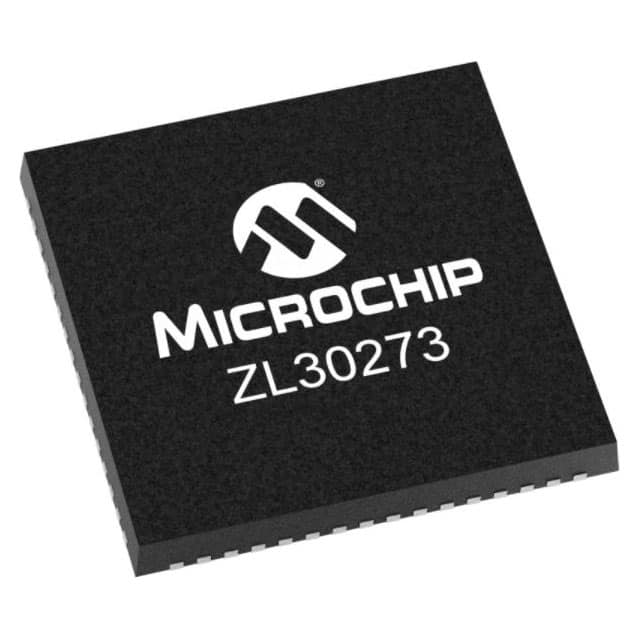

ZL30273LDG1
