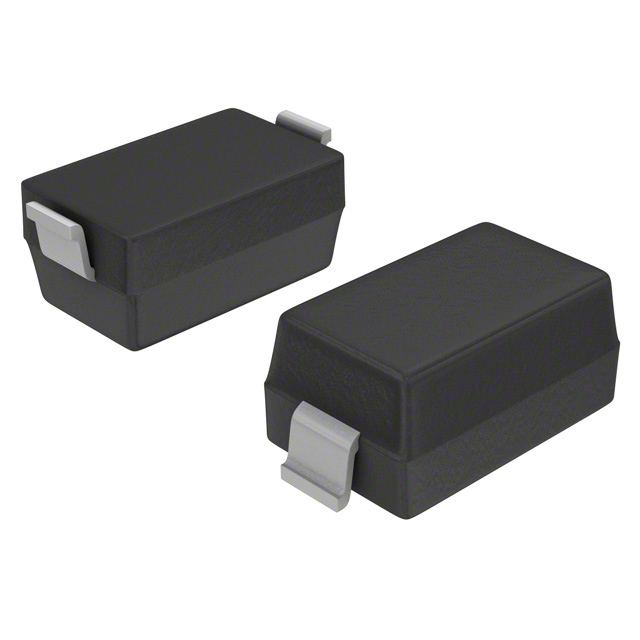

STPS0560Z
DIODE SCHOTTKY 60V 500MA SOD123Manufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More
STMicroelectronics STPS0560Z is a Schottky diode designed for efficient rectification and switching applications. This component features a 60V reverse voltage rating and a continuous average rectified forward current capacity of 500mA. The STPS0560Z exhibits a low forward voltage drop of 530mV at 500mA, contributing to reduced power loss. Reverse leakage current is specified at 50µA at 60V. Operating at a maximum junction temperature of 150°C, this diode is housed in a compact SOD-123 surface mount package and is supplied on tape and reel for automated assembly. Its characteristics make it suitable for use in power supplies, voltage clamping, and general-purpose rectification across various industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-123 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 500mA |
| Supplier Device Package | SOD-123 |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Voltage - Forward (Vf) (Max) @ If | 530 mV @ 500 mA |
| Current - Reverse Leakage @ Vr | 50 µA @ 60 V |
