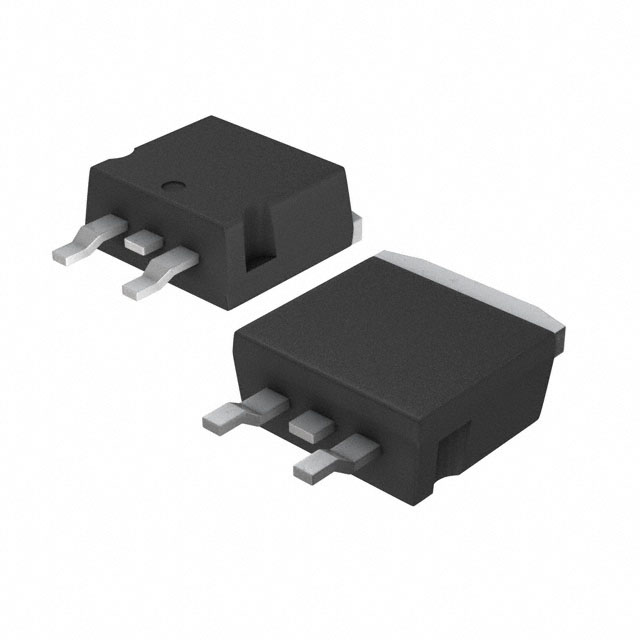

STBR3012G2Y-TR
DIODE GP 1.2KV 30A D2PAK HVManufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More
STMicroelectronics STBR3012G2Y-TR is a general-purpose diode from the ECOPACK®2 series, designed for high voltage applications. This surface-mount component, housed in a TO-263-3, D2PAK (2 Leads + Tab) package, offers a 1200V reverse voltage rating and a 30A average rectified forward current. It exhibits a low reverse leakage of 2 µA at 1200V and a forward voltage drop of 1.3V at 30A. The device is qualified to AEC-Q101 standards and operates within a junction temperature range of -40°C to 175°C. Its standard recovery speed is greater than 500ns for currents above 200mA. This component is suitable for automotive and industrial power systems requiring robust high-voltage rectification. The part is supplied in Tape & Reel packaging.
Additional Information
Series: ECOPACK®2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 30A |
| Supplier Device Package | D2PAK HV |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 30 A |
| Current - Reverse Leakage @ Vr | 2 µA @ 1200 V |
| Qualification | AEC-Q101 |
