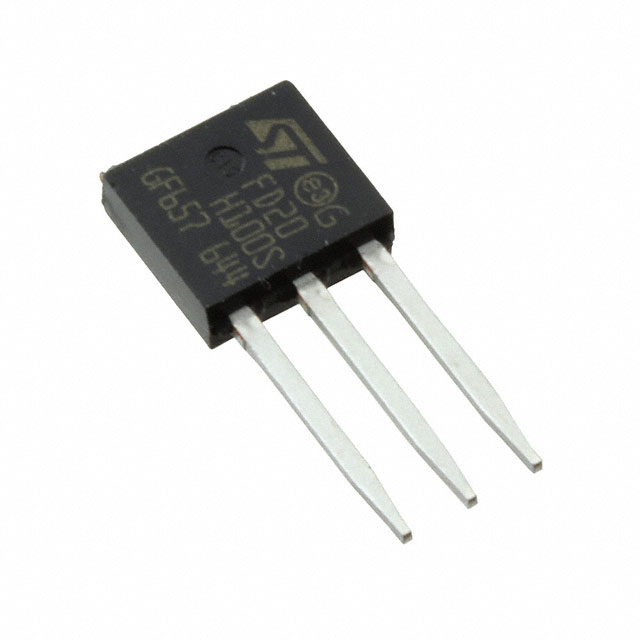

FERD20H100SH
DIODE FERD 100V 20A IPAKManufacturer: STMicroelectronics
Categories: Single Diodes
Quality Control: Learn More
STMicroelectronics FERD20H100SH is a fast-recovery diode designed for high-power applications. This component features a 100V reverse voltage rating and a continuous forward current capability of 20A. The FERD technology offers a low forward voltage drop of 705mV at 20A and a low reverse leakage current of 140µA at 100V. Operating at a maximum junction temperature of 175°C, the device is housed in an IPAK (TO-251) package with through-hole mounting. This diode is suitable for use in power switching circuits, automotive electronics, and industrial power supplies.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-251-3 Short Leads, IPAK, TO-251AA |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | FERD (Field Effect Rectifier Diode) |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 20A |
| Supplier Device Package | IPAK (TO-251) |
| Operating Temperature - Junction | 175°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 705 mV @ 20 A |
| Current - Reverse Leakage @ Vr | 140 µA @ 100 V |
